Plastic / Metal Material Medical O2 Sensor Envitec OOM102 3 Pin Molex Connector

Plastic / Metal Material Medical O2 Sensor Envitec OOM102 3 Pin Molex Connector

envitec oxygen sensor

drager oxygen sensor

Place of Origin:

China

Brand Name:

envitec

Certification:

CE

Model Number:

OOM102

Contact Us
Request A Quote
Product Details
Material:
Plastic And Metal
Connector:
3 Pin Molex Connector
Color:
White
Packing:
Box
Weight:
30g
Orignal Code:
OOM102
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
AS discussed
Packaging Details
1pcs / box
Delivery Time
2-3 work days
Payment Terms
T/T, Western Union
Supply Ability
200pcs / week
Product Description



Envitec OOM102 medical oxygen sensor / O2 Cell



Specification:

  1. Output signal in air: 9-14mV
  2. Circuit Interface: 3Pin Molex Connector
  3. Accuracy and repeatability: <1% volume of oxygen, after calibration in 100% oxygen
  4. Linearity error: <3% relative error
  5. Response time: <12 seconds, relative to 90% relative value
  6. Zero drift: <200uV placed in 100% nitrogen for 5 minutes
  7. Cross interference: <0.5% volume of oxygen for:
  8. 10% CO2 in balanced nitrogen
  9. 80% N2O in balanced nitrogen
  10. 7.5% halothane in balanced nitrogen
  11. 7.5% isoflurane in equilibrium nitrogen
  12. 7.5% enflurane in equilibrium nitrogen
  13. 9% enflurane in balanced nitrogen
  14. 20% desflurane in equilibrium nitrogen
  15. Effect of temperature: -0.03% relative temperature, 25 ° C
  16. The effect of pressure: proportional to the oxygen partial pressure
  17. Mechanical shock impact: <1% relative error, falling from a height of 1 meter
  18. Working temperature: 0°C-50°C
  19. Temperature compensation: Built-in thermistor compensation
  20. Temperature effect: 25 ° C -40 ° C, 3% relative error
  21. Compensation (steady state): between 0 ° C and 50 ° C, 8% relative error
  22. Operating humidity: 0-99% RH (a few hours in condensable air)
  23. Storage temperature: -20 ° C -50 ° C
  24. Recommended storage temperature: 5 ° C - 15 ° C
  25. Recommended load: ≥10Ω
  26. Warm-up time: <30 minutes after replacing the sensor
  27. Rated sensor life: ≥1 000 000% volume oxygen hour
  28. Weight: about 28g



OOM102

9mV-14mV

temperature compensated

<12 seconds > 1 000 000 % O2 hours 3 pin Molex connector Airshields Isolette (Hill Rom) C2000/C200 8362030
ATOM 2100 Incubator ,2000
Biotest A103
City Technology, MOX-1 ,MOX-01
Criticare (8100 Poet, 8500 Poet)
CSI 644 cell
Datascope 0600-00-0002
Sensor Tec (BPR Medical) ST-12
Space Labs 90514
Teledyne, Hill-ROM,GE Marquette R22 MED
Maxtec MAX-12A
Ohmeda Centiva S/5
Nuova E-17/A2

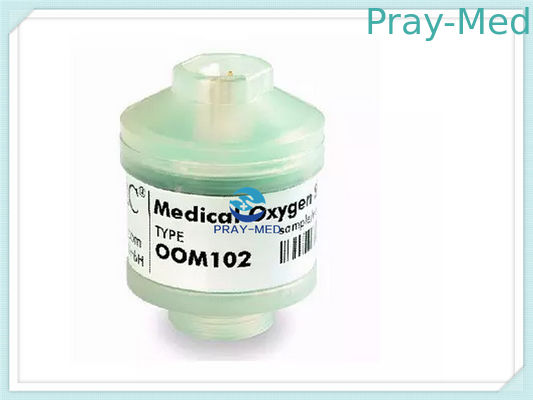

Plastic / Metal Material Medical O2 Sensor Envitec OOM102 3 Pin Molex Connector 0

Plastic / Metal Material Medical O2 Sensor Envitec OOM102 3 Pin Molex Connector 1
