FDA 70kPa 250bpm OLED Fingertip Pulse Oximeter

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: CE,FDA
Model Number: M160
Minimum Order Quantity: 20pcs
Price: as discussed
Packaging Details: 1pcs / box
Delivery Time: 3-4 work days
Payment Terms: T/T, Western Union
Supply Ability: 20000pcs / day
Properties: Medical Accessories Type: Portable Taken
Color: Green,blue,black Instrument Classification: Class II
Warranty: 12months Application: Families,Clinic,Patient Monitor,Home Hospital
Sample: Available Product Name: Pulse Oximeter
Packing: 1pcs / Box Shipping: DHL/FEDEX/EMS/TNT/UPS
Service: OEM/ODM Feature: OLED Display
High Light:

250bpm OLED Fingertip Pulse Oximeter

,

70kPa OLED Fingertip Pulse Oximeter

,

FDA Reusable Fingertip Pulse Oximeter

OLED fingertip pulse oximeter with factory approved by CE And FDA





Major Features:

1. Easy to use,Portable,can use anywhere and anytime!

2. Low power consumption

3. Integrated with SpO2 probe and processing display module

4. SpO2,PR(Pulse Rate).PI(Perfusion Index) value display

5. Pulse rate value display, bar graph display

6. Pulse waveform display

7. The display mode can be changed

8. With measured data overruns limits and low-voltage alarm function,the limit value is adjusted automatically

9. Low-voltage icon appears before working abnormally which is due to low-voltage,and with alarm function

10. When the device is under the state of measuring,it will automatically power off if the finger falls out of probe



5. Normal working condition

Working Temperature 5°C to 40°C (41°F to 104°F)
Relative Humidity 15% to 80%, non-condensing
Atmospheric Pressure 70kPa to 106 kPa
Rated Voltage DC 3.0 V



6. Default values and conditions of alert

Parameter Value
Oxygen saturation

Upper limit: 100

Lower limit: 94

Pulse rate

Upper limit: 130

Lower limit: 50

Alert condition When the alert switch is on and the actual measured value goes beyond the preset alert parameter range, the Oximeter gives an alert sound.



7. Technical parameters

Parameter Value
Display range Oxygen saturation 35% to 100%
Pulse rate 25 bpm to 250bpm
Resolution Oxygen saturation 1%
Pulse rate 1 bpm
Measurement precision Oxygen saturation

±2% (70% to 100%)

No requirement (≤ 69%)

Pulse rate ±2 bpm
Alert range Oxygen saturation

Upper limit: 50% to 100%

Lower limit: 50% to 100%

Pulse rate

Upper limit: 25 bpm to 250 bpm

Lower limit: 25 bpm to 250 bpm

Alert error Oxygen saturation ± 1% of the preset value
Pulse rate The greater of ±10% of the preset value and ±5 bpm
PI Weak PI Min. 0.2%

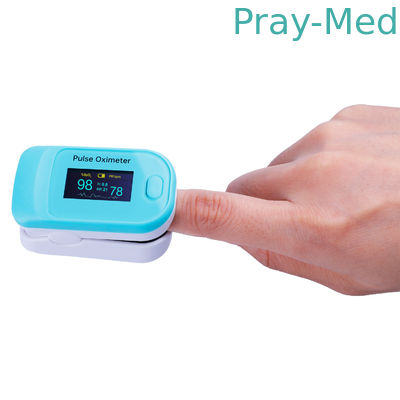

FDA 70kPa 250bpm OLED Fingertip Pulse Oximeter 0

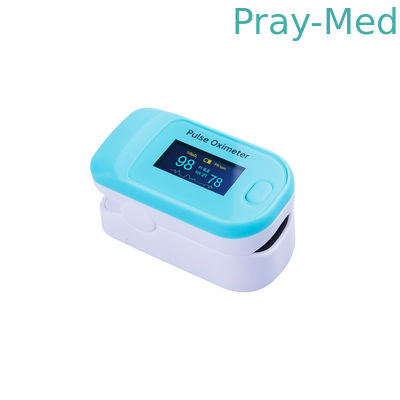

FDA 70kPa 250bpm OLED Fingertip Pulse Oximeter 1

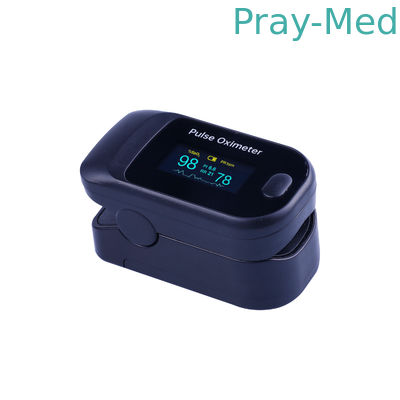

FDA 70kPa 250bpm OLED Fingertip Pulse Oximeter 2

FDA 70kPa 250bpm OLED Fingertip Pulse Oximeter 3

FDA 70kPa 250bpm OLED Fingertip Pulse Oximeter 4

FDA 70kPa 250bpm OLED Fingertip Pulse Oximeter 5
