Place of Origin:
China
Brand Name:
pray-med
Certification:
CE

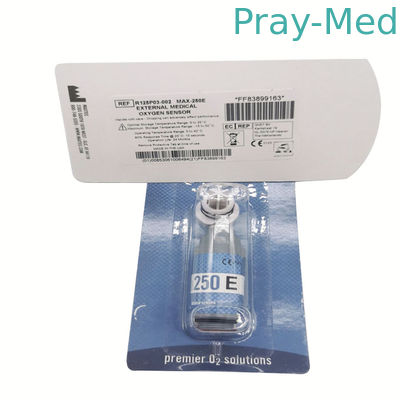

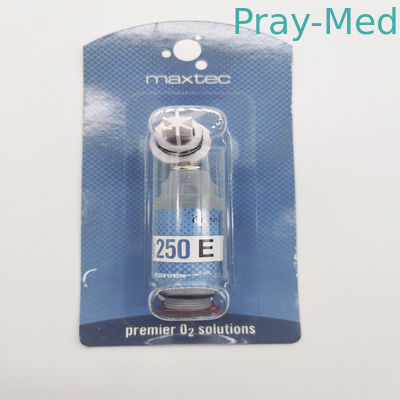

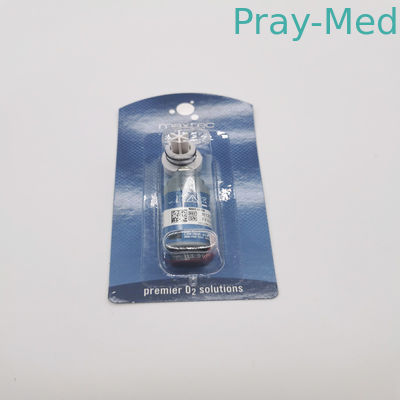

Medical oxygen sensor/O2 sensor Cell For Ventilator Machines MAX-250E
product description
The Maxtec MAX-250E Oxygen Sensor (#R125P03-002) is an FiO2 (Fraction of Inspired Oxygen) Sensor compatible with a variety of systems. It is an equivalent replacement for several oxygen sensors, and is primarily used with Ventilator Machines.
| Product Model | MAX-250E |
| Measurement range | 0-100 % |
| Output | 10 to 16mV |
| Zero voltage | Less than 0.5 mv |
| Resolution | 0.1 % |
| Resolution | 0.1 % |
| Temperature range | 5 ℃ to 45 ℃ |
| Pressure range | 0.5 to 1.5 ATM |
| Response time | <15S (for 90%), <25S (for 97%) |
| Filter gas | ompletely filter interference of CO, CO2, H2, H2S, SO2, NO and other gases |
| Recommend a load value | > 1 m Ω |
| Accuracy: 1% | (normal temperature and pressure), 2% (full range temperature range) |
| Storage temperature | 15 ℃ to 50 ℃ |
