LED Fingertip Pulse Oximeter For Home And Hopstial Use

Basic Information
Place of Origin: china
Brand Name: OEM
Certification: CE,FDA
Model Number: M230
Minimum Order Quantity: 10pcs
Price: as discussed
Packaging Details: 1pcs / colorful box
Delivery Time: 2-4 work days
Payment Terms: T/T, Western Union
Properties: Medical Materials & Accessories Type: Surgical Supplies
Color: Blue,Grey Or Blue Instrument Classification: Class II
Warranty: 1 Year Application: Families,Clinic,Home Hospital
Sample: Available Packing: 1pcs / Boc
Service: OEM/ODM Feature: Safety
Model: OLED Display Application: Home,clinic,hopstial
High Light:

FDA Approved fingertip Pulse oximeter


CE LED Fingertip Pulse Oximeter


OEM Medical Fingertip Pulse Oximeter

LED fingertip Pulse oximeter with CE and FDA for Home and hopstial use



Major Features
 Integrated with SpO2 probe and processing display module
 Small in volume,light in weight and convenient in carrying
 Operation of the product is simple ,low power consumption
 SpO2 value display
 Pulse rate value display, bar graph display
 Pulse waveform display
 The display mode can be changed
Screen brightness can be changed
 Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
 Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe.
Display format can be saved after power off

popular use in home,clinic and hosptial

Display Information

Display Mode

Display Format

LED display

The Pulse Oxygen Saturation (SpO2)


Pulse Rate (PR)


Pulse Intensity (bar-graph)

Digital bar-graph display

SpO2 Parameter Specification

Measuring range

35%-100% (the resolution is 1%).


70%-100%;±2%, Below 70% unspecified.

Pulse Parameter Specification

Measuring range

25bpm-250bpm (the resolution is 1 bpm)



Pulse Intensity


Continuous bar-graph display, the higher display indicates the stronger pulse.

Alert conditions


Less than 94%


Less than 50bpm or more than 130bpm

Battery Requirement

2 X 1.5V (AAA size) alkaline battery

Power Consumption

Smaller than 35 mA.

Battery Useful Life

Two batteries can work continually for 24 hours

Power off

The Oximeter can be powered off in case no finger is the Oximeter within 16 seconds.

Optical Sensor

Red light (wavelength is 660nm)

Infrared (wavelength is 905nm)

Dimensions and Weight


62 (L)X37 (W)X32(H) mm


About 50g (with the batteries)

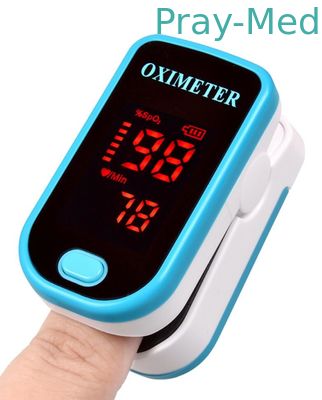

LED Fingertip Pulse Oximeter For Home And Hopstial Use 0

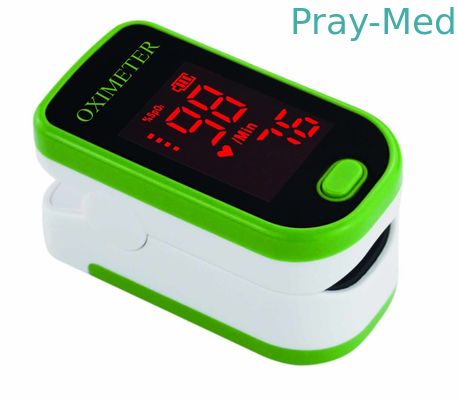

LED Fingertip Pulse Oximeter For Home And Hopstial Use 1

LED Fingertip Pulse Oximeter For Home And Hopstial Use 2
