Name: 6850645 Draeger Oxygen Sensor O2 Cell / Oxygen Battery Plastic Metal Material
Brand: Shenzhen Pray-med Technology Co.,Ltd
SKU: 6850645
Price: 49.50 USD
Availability: InStock

Brand Name:	drager
Model Number:	6850645
MOQ:	1pcs
Price:	as discussed
Packaging Details:	1pcs / box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

Color:

White

Material:

Plastic And Metal

Orignal Code:

6850645

Package:

Box

Weight:

25g

Electrical Connector:

Old Plated Slip Rings

Supply Ability:

300pcs / week

Highlight:

envitec oxygen sensor

drager oxygen sensor

6850645 O2 Sensor Cell

Product Description

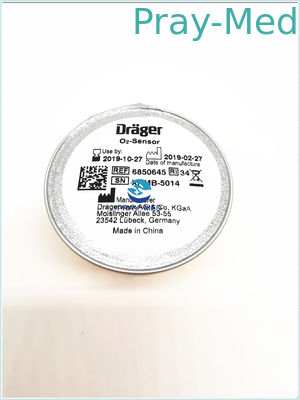

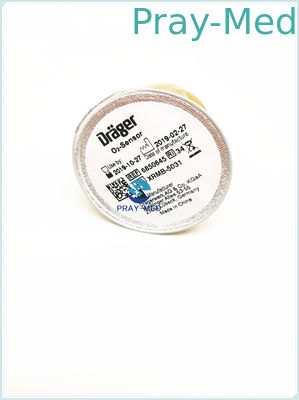

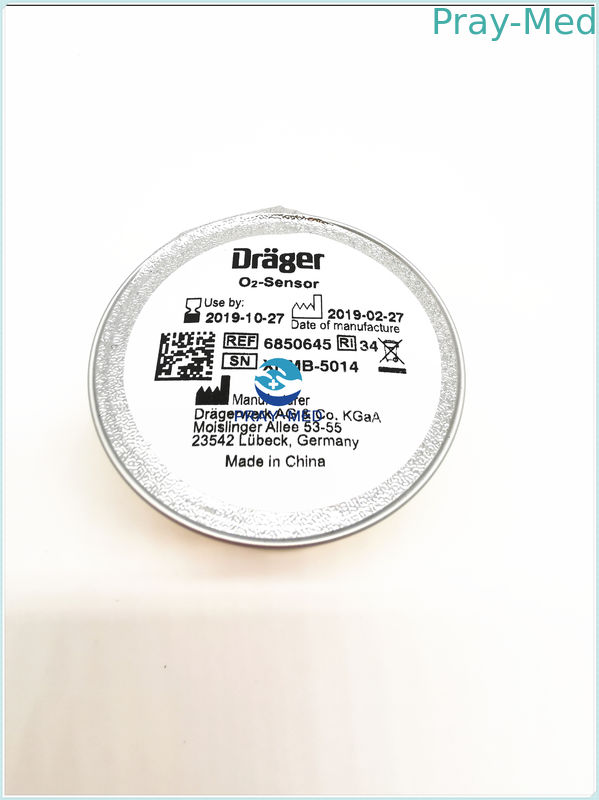

Drager 6850645 medical oxygen sensor o2 cell / oxygen battery

Technical Specifications

Measuring range	0-100%
Accuracy	+/-2% of full scale
Signal output	10-14mV
Linearity	+/-2% of full scale
Response T90	13 sec
Temp Coefficient	compensated
Shelf Life	6 months
Humidity Non-condensing	0-99% RH
Operating Temp	0 to 40℃
Recommended storage	0 to 25℃
Expected Life	60 months
Warrangty	18 months
Electrical Connector	gold plated slip rings

Measurement Range:	0-100 % oxygen
Accuracy and Repeatability:	< 1 % vol. O₂when calibrated at 100 % O₂
Zero Ofset:	< 0.5 % vol. O₂in 100% N₂, applied 5 minutes
Linearity Error:	< 3 % relative
Cross Interference:	< 0.5 % vol. O₂response to:
	10 % CO₂balance N₂
	80% N₂O balance N₂
	7.5% Halothane balance N₂
	7.5 % Isofurane balance N₂
	7.5 % Enfurane balance N₂
	9% Sevofurane balance N₂
	20% Desfurane balance N₂
Infuence of Humidity:	- 0.03 % rel. per % RH at 25C
Infuence of Pressure:	proportional to change in oxygen partial
	pressure
Infuence of Mechanical Shock:	< 1% relative after a fall from 1m
Operating Temperature:	0 to 50C
Temperature Compensation:	built-in NTC compensation (see below)
Efect of Temperature	between +5 C and +25 C: 3 % relative error
Compensation (steady state):	between 0 C and +50 C: 8 % relative error
Operating Humidity:	0-99 % RH non-condensing
Long Term Output Drift:	< 1 % vol oxygen per month
	typically < - 15 % relative over lifetime
Storage Temperature:	-20 to +50 C
Recommended Storage:	+5 to +15 C
Recommended Load:	10 kOhms
Warm-Up Time:	< 30 minutes, after replacement of sensor
Weight:	approximately 28 grams
	approximately 43 grams E61912 series

6850645 Draeger Oxygen Sensor O2 Cell / Oxygen Battery Plastic Metal Material 0
