Place of Origin:
China
Brand Name:
pray-med
Certification:
CE
Model Number:
M2741-68100

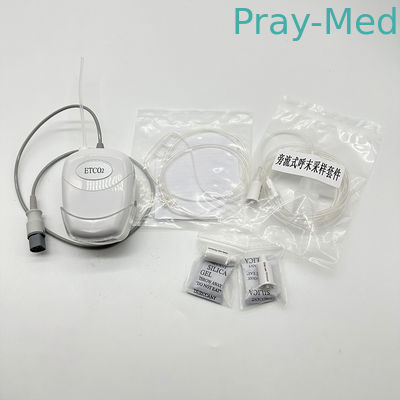

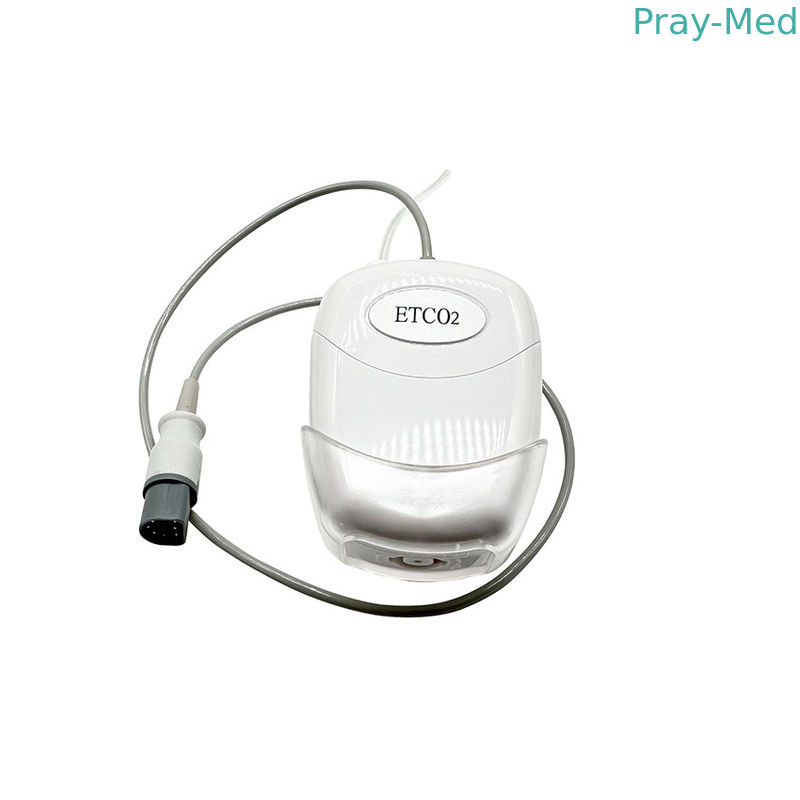

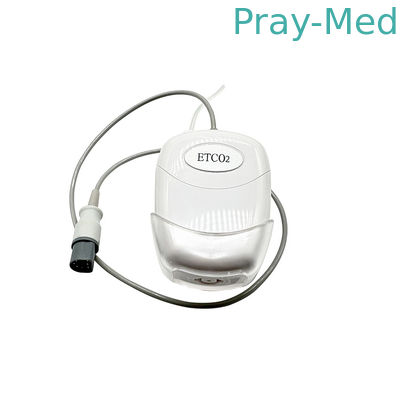

M2741-68100 LoFlo Side-Stream CO2 Sensor Module Co2 Monitor
The Ph M2741A LoFlo sidestream etCO2 sensor uses sophisticated infrared absorption spectroscopy
to measure etCO2 and respiration rate. The sensor delivers a clear, precise capnogram for respiratory rates
up to 150 breaths per minute. And with a sampling rate of 50 ml/min, it is ideal for use with infants and smaller
patients. The LoFlo sidestream etCO2 sensor is used with Ph capnography measurement server extension
(M3014A) in combination with the IntelliVue multi-measurement server. Ph offers airway adapter sets for
intubated patients that require close monitoring of their etCO2 levels. Nasal and oral-nasal cannulas are available
for non-intubated patients who undergo procedural sedation.
| Model Number | ETCO2 Sensor |
| Disinfecting Type | Ultraviolet Light |
| Size | 15x8x2cm |
| Stock | Yes |
| Shelf Life | 1years |
| Material | Plastic |
| Quality Certification | CE |
| Product name | Side Flow CO2 Module |
| Color | white |
| Connector | 8-pin D-Shaped Male Connector |
| Length | 0.9m |

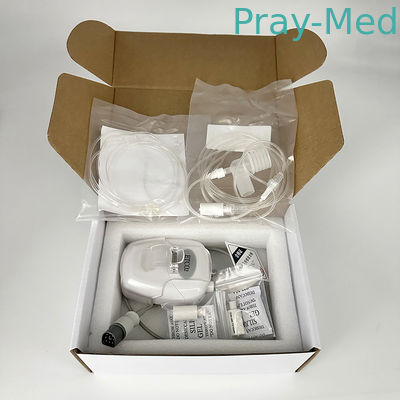

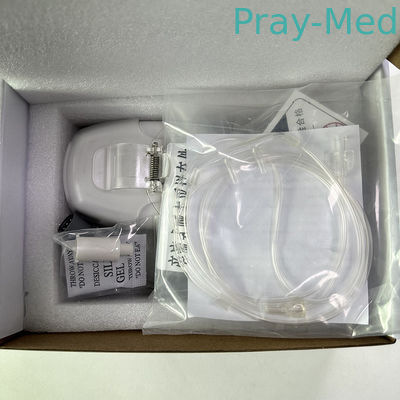

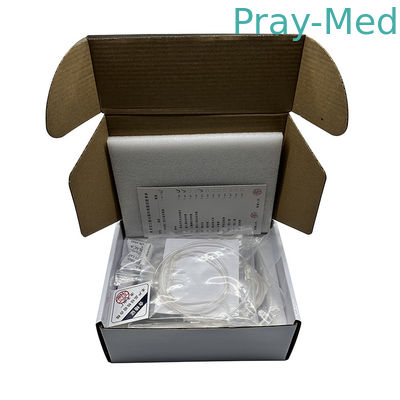

| Packing | box |
• Application environment: ideal for the general ward, ICU,CCU, ER, OR and EMS
• Compatible: M2741A sensor is compatible with the entirefamily of IntelliVue patient monitors (Release D.0 or later)
• Dependable: delivers a clear, precise measurement of etCO2
• Reliable: rugged solid-state design
• Innovative: sampling cell and filter are attached to the
disposable sampling kits, preventing fluids from contaminating
the sensor
• Easy: plug-and-play functionality; intuitive and easy to use,no regular calibration required
2. If the new items can not work with your devices, we will send new replacement or refund in time.
