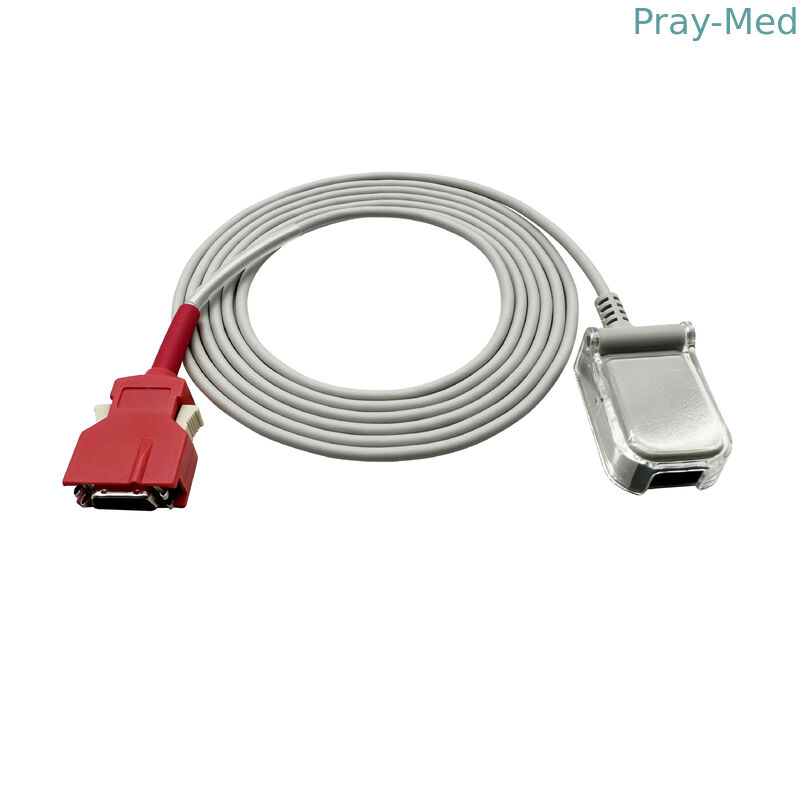

Durable Spo2 Adapter Cable Fit Masim Radical 7 / Rad 8 20 Pin Connector

Basic Information
Place of Origin: china
Brand Name: Masim
Certification: CE,ISO
Model Number: Masim 2056
Minimum Order Quantity: 1pcs
Price: as the request
Packaging Details: 1pcs / bag
Delivery Time: 5-7 work days
Payment Terms: Western Union, T/T,
Supply Ability: 1000pcs / week
Material: TPU Cable Color: Grey White / Blue
Cable Length: 2.4m Cable Diameter: 4.0mm
Connector: 20pin Technology: Masim
Weight: 0.3lb Warranty: 1 Year
High Light:

spo2 sensor cable


spo2 extension cable

Compatible Masim radical 7 / 8 spo2 adapter cable extension cable with 20pin for original 2365 / 2055 / 2056/ 2057



Original Masim Red LNCS 20 pin Adapter Cable LNC-01 (2365), LNC-04 (2055), LNC-10 (2056), LNC-14 (2057) for use with Masim LNCS sensors. This adapter cable is for use exclusively with Masim monitors Radical-7, Rad-87, Rad-57 and Pronto-7. For all other monitors with Masim technology, you can use the Masim SpO2 adapter cable 1814.

Main Technical Parameters : 1) Emitted light wavelength: 660±5nm, Absorbed light wavelength: 905±5nm

2) SpO2 test range: 70%-100%;

SpO2 measurement accuracy:

±1% in 90%~100%, ±2% in 80%~89%, ±3% in 70%~79%.

3) Range of pulse rate : 30bpm~245bpm

Measurement accuracy of pulse rate:

±1bpm for 30bpm~59bpm, ±2bpm for 60 bpm~149bpm, ±3bpm for 150bpm~245bpm


Working Environment Requirements: Temperature:5℃~40℃; Relative humidity:≤80%; Air pressure:700hPa~1060hPa


Intended Use: TJ SpO2 sensor is suitable for adult patient (weight >40kg), pediatric patient (weight:10-40kg) to conduct a spot check or continuous noninvasive measurement of arterial oxygen saturation and pulse rate.


Process flow


1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package

Durable Spo2 Adapter Cable Fit Masim Radical 7 / Rad 8 20 Pin Connector 0

Durable Spo2 Adapter Cable Fit Masim Radical 7 / Rad 8 20 Pin Connector 1
