| Place of Origin: | China |
|---|---|
| Brand Name: | DMS |
| Certification: | CE |
| Model Number: | 300-3A |
| Minimum Order Quantity: | 5pcs |
| Price: | as discussed |
| Packaging Details: | 1pcs / bag |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | as demand |
| Material: | TPU | Color: | Grey |
|---|---|---|---|
| Length: | 3m | Leads: | 7lead |
| Diameter: | 4mm | Warranty: | 1 Year |
| High Light: | ecg trunk cable,ecg electrode cable |
||

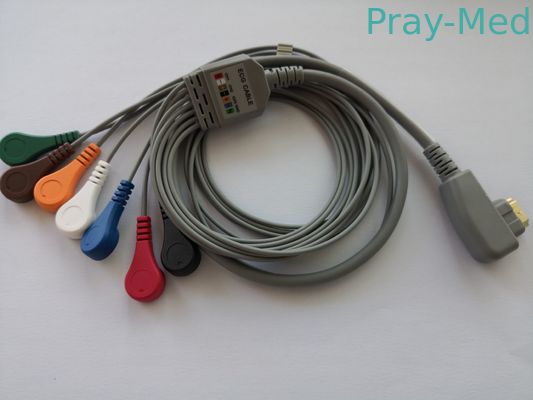

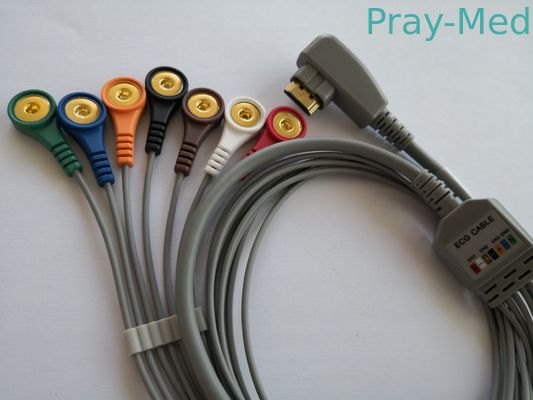

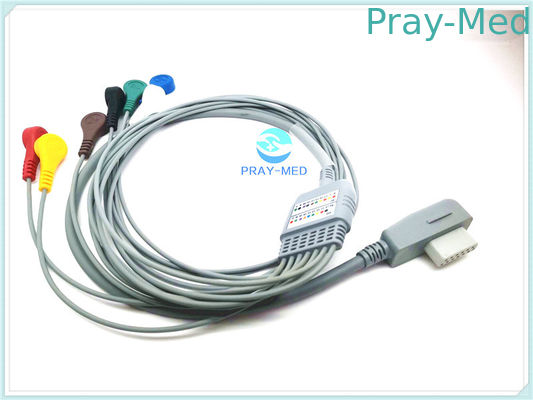

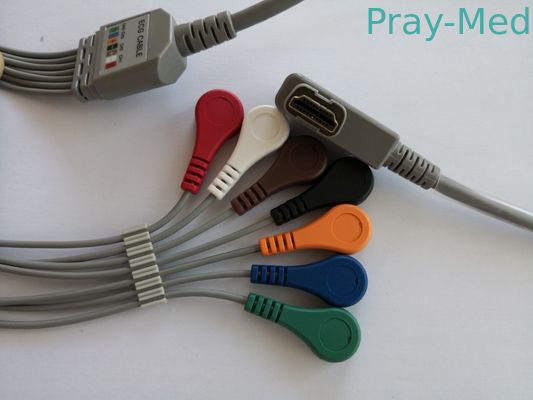

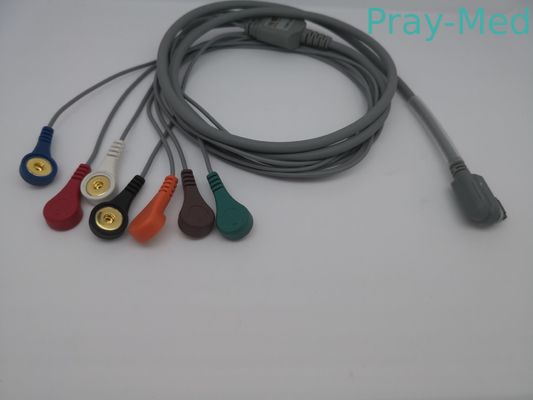

DMS 300-3A ECG Holter cable for 7 lead ECG recorder holter ecg patient cable
ECG executive standards: ANSI / AAMI EC53: 1995 / (R) 2001
Note: ANSI / AAMI EC53: 1995 / (R) 2001 Standard the not description
General requested by the executive.
Customer special electrical and mechanical performance requirements.
(Please check the Implementation standards in remarks.)
Electrical performance:
Conduction test: 100conduct ok. No short circuit. No open circuit.
No color difference.
(EC53: 1995 4.5.8 & GB / T 5095.2-1997) conduct resistance: DC500V
≤ 2Ω. (EC53: 1995 4.5.8 & GB / T 5095.2-1997)
1000V AC ≤ 0.25mA 1min.
