| Brand Name: | Envitec |
| Model Number: | OOM202 |
| MOQ: | 1pcs |
| Price: | as quantity |
| Packaging Details: | 1pcs/ box |
| Payment Terms: | T/T, Western Union, |

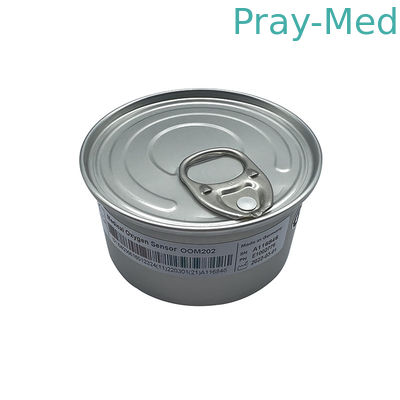

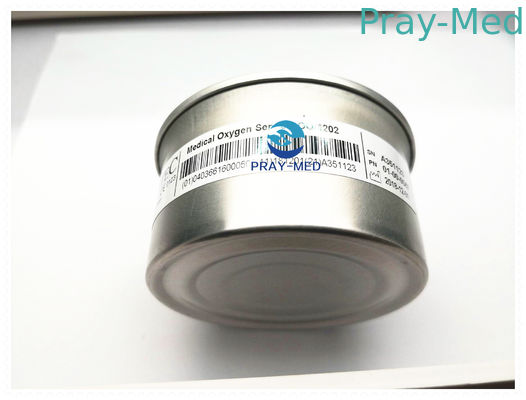

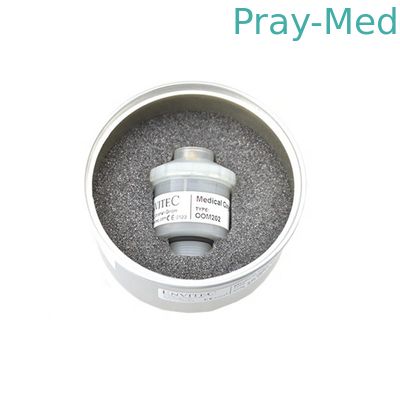

Envitec OOM202 medical oxygen sensor / O2 sensor Siemens sv300 / PB760 / PB840
Technical Specifications
| Measuring range | 0-100% | |||
| Accuracy | +/-2% of full scale | |||
| Signal output | 13-16mV | |||
| Linearity | +/-2% of full scale | |||
| Response T90 | 13 sec | |||
| Temp Coefficient | compensated | |||
| Shelf Life | 6 months | |||
| Humidity Non-condensing | 0-99% RH | |||
| Operating Temp | 0 to 40℃ | |||
| Recommended storage | 0 to 25℃ | |||
| Expected Life | 60 months | |||
| Warrangty | 15 months | |||
| Electrical Connector |
Molex 3pin connector
|
|||
13mV-16mV
temperature compensated
<12 seconds
> 1 000 000 % O2 hours
3 pin Molex
Analytical Industries PSR-11-917-M
Bird Products (VIASYS)Avea.
Vent Catalyst Research MSA 472062 , 470644 Ceramatec CAG-12 City Technology MOX-9 ,MOX-09 EME, Infant Flow Hamilton Galileo,Raphael, Alladin HM-12 , 51214 Hudson 5566 Infrasonics Adult Star 601T , 60116 IT-Gambert M-04 ,M-16 Maxtec MAX-12 ,MAX-16 Mercury Medical 10-103-06 Ohmeda O2 cell 6051-0000-222 Pacifitech PT-12 Puritan Bennett Ventilators 840, 740, 760 4-072214-00 PPG Biomedical Saracap 504055-001 Sensidyne SV-12A Sensor Tec (BPR Medical) ST-12, ST-04 Siemens Servo Ventilators, 900, 900C, 900D, 700, 710, 300, V710300 , 9004979 , 6419332 Space Labs 90514 , Gas Analyzer 015-0132-03 Taema YR049700, Cesar 2, Horus Teledyne R24 , R24MED , Cheiron R-24 , Hill-ROM R-24 Vascular Technology 103100 Ventrex V-12A VTI 103100 Nuova E-17/M
|
|
