| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DMS |
| Certification: | CE,ISO |
| Model Number: | DMS300-3A |
| Minimum Order Quantity: | 1pcs |
| Price: | as discussed |
| Packaging Details: | 1pcs / bag |
| Delivery Time: | 3-4 days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 500pcs / week |
| Properties: | Medical Materials & Accessories | Type: | Holter Ecg Cable |
|---|---|---|---|
| Instrument Classification: | Class III | Material: | TPU |
| Color: | Grey | Application: | Holter Monitor Ecg Machine |
| Packing: | 1pc/bag | Length: | 90cm |
| Lead: | 10 Lead | Connector: | 19pin |
| High Light: | one piece ecg cable,ecg electrode cable |
||

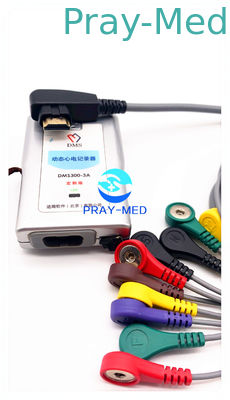

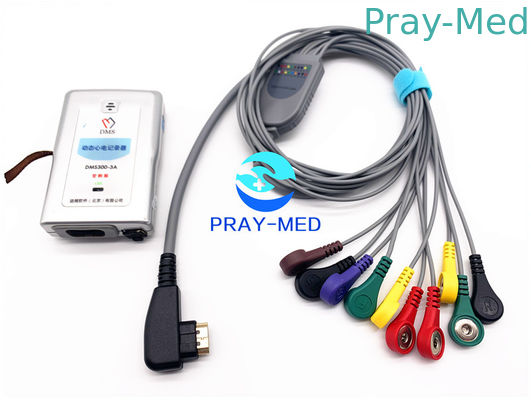

DMS Holter ecg cable for DMS300-3A 10lead holter cable
Speficication:
patient cable fo DMS300-3A ecg holter ,5lead,7lead ,10lead
EKG cable with leadwires
instrument connector:HDMI 19PIN
compatibility:DMS300-3,DMS300-3A,DMS300-4A,DMS300-4
Production Feature:
1:Insulated performance:Between wire and wire ,wire and shield ,the
insulated resistance should >100MΩ ,the testing voltage should be 100 DC.
2:Strength of anti electricity , between wire and wire ,wire and shield,exert
AC1000V±20%,50Hz voltage,1 s, creepage current<0.25mA, 1 s, creepage
current≤0.25mA
3:Creepage current: use the 120V AC 60HZ power supply, live wire tadem
ammeter and all trunk cable and lead wire signal cable, the ammeter indicate
the passed creepage current less than 10A
4:Anti defibrillation performance(sutible for the product with defibrillation
function) The product suffer DC5000V 360J(joule)20% power surge 3 times
(every time exert electricity power time is 60seconds) Change in resistance
value does not exceed ±10%
