| Brand Name: | OEM |
| Model Number: | OEM |
| MOQ: | 1pcs |
| Price: | as discussed |
| Packaging Details: | 1pcs / box |
| Payment Terms: | T/T, Western Union |

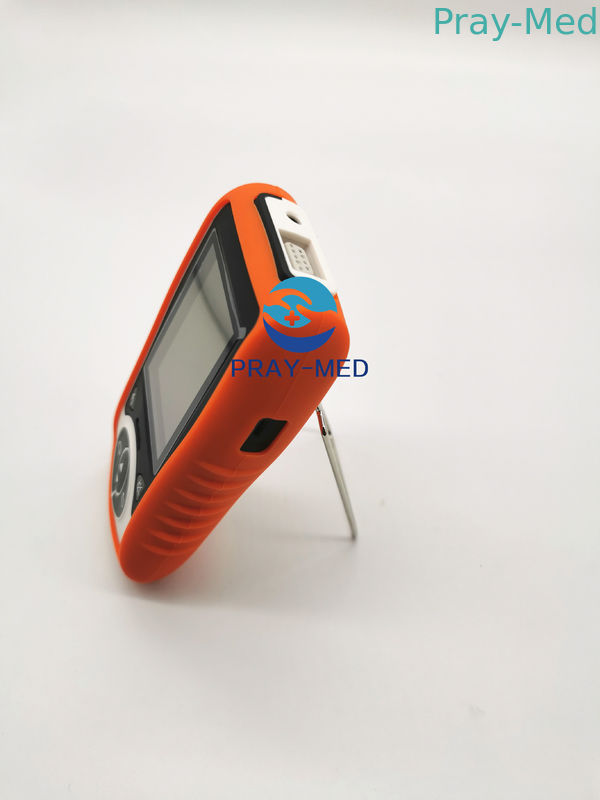

Handheld pluse oximeter with temperature LCD display CE approved
Parameter Specifications
SpO2
Patient: adult, child
Range: 35%~ 100%
Resolution: 1%
Accuracy: (70%-100%)
2% Normal
3% Motion or low perfusion
Below 70% not specified
PR
Range: 25bpm~ 250bpm
Resolution: 1bpm
Accuracy: (25-250bpm)
2bpm Normal
3bpm Motion or low perfusion
Temperature
Channel:1
Measuring and Alarm Range: 18~ 45℃
Resolution: 0.1℃
Accuracy: 0.1℃
Actualization interval: about 1 Sec
Average Time Constant: 〈10 Sec
Feature
2.8 inch color TFT LCD display for SPO2&PR.Silicon rubber shell for easy protection.Compatible with SPO2 Sensor.USB port support download test results to computer.Automatically switch off within 3 minutes when no signal.Adjust the parameters in friendly menu.Inner Flash memory can store testing result up 90 hours.Stable bracket for table usage.Visual and sound alarm function.Support 4*AA Alkaline battery and rechargeable Li battery.Low Battery voltage indicator.
Specifications
Display Mode: 2.8" Color LCD display display
SpO2
Measuring Range: 35%-100%
Accuracy: 2% (80%~100%), 3% (70%~80%), unspecified (<70%)
Pulse rate (PR)
Measurement range: 25-250 BPM
Accuracy: 2BPM
Because of the aviation restrictions, batteries are not included in the package, please use alkaline battery or Li battery to run it.
Instructions for use
Select a suitable site for the sensor, for example the animal's ear. Alternative sites recommended are claw, hands or arms.Fit the sensor as illustrated on right. the animal's claw must inserted right to the end of the sensor. Direct the cable along the patient's claw and parallel to the arm. Affix with adhesive tape if required.Connect the sensor cable to the monitor or the patient cable and verify proper operation as described in the instrument's operator manual.
Standard Accessory
Handheld Pulse Oximeter unit: 1 pcs
Adult Clip SpO2 Sensor: 1pcs
USB Cable: 1pcs
CD Software (User Manual, PC software): 1pcs
Optional Accessory
Adult Soft tip SpO2 sensor: 1pcs
Child finger clip SpO2 sensor: 1pcs
Child soft tip SpO2 sensor: 1pcs
Neonate Wrap SpO2 sensor: 1pcs
Skin Surface Temperature Probe: 1pcs
|
|
