HEYER 8 Pin 5 Lead One Piece ECG Cable, IEC Snap Electrode

Brand Name:	HEYER
Model Number:	HEYER Scalis M, Scalis 12, Scalis 15, VizOR patient monitor, AG70 anesthesia workstation; also compatible with SAADAT, SIARE Sierra Neptune monitors with 8-pin round ECG port.
MOQ:	1pcs
Price:	as demand
Packaging Details:	1pcs / bag
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE,ISO

Connector Proximal:

Pinch/Grabber,snap

Packaging Unit:

1pc

Single Gross Weight:

0.200 Kg

Packaging Type:

Bag

Connector Distal:

Round, 45° Angled, 6-pin Connector, Keyed

Lead Color Coding:

AHA/IEC

Total Cable Length:

2.5M

Disinfecting Type:

Alcohol Disinfection

Safety Standard:

EN 149 -2001+A1-2009

Sterile:

Category:

ECG

Lead Cable Material:

Outer Is TPU, Inner Is Tin-plated Copper Conductor

Warranty:

12 Months

Patient Size:

Adult/Pediatric

Lead Cable Color:

Gray

Cable Material:

Germany Huntsman TPU 5040

Supply Ability:

1000pcs / day

Highlight:

8 pin ECG cable with IEC snap

5 lead ECG electrode cable

one piece ECG snap cable

Product Description

HEYER 8-Pin 5-Lead One-Piece ECG Cable, IEC Snap Electrode

Product Overview

The HEYER Compatible One-Piece 5-Lead ECG Cable is a medical-grade diagnostic solution designed for seamless integration with HEYER patient monitoring systems. Featuring a secure 8-pin monitor connector, this integrated (one-piece) cable combines the main trunk line and leadwires into a single molded unit. This design effectively eliminates cable clutter and prevents accidental lead wire disconnection. Equipped with IEC (European standard) color-coded Snap ends, it ensures reliable, high-fidelity 5-lead cardiac tracking across critical care and routine monitoring environments.

Key Features

Precise HEYER Compatibility: Precision-molded 8-pin connector provides a secure, wiggle-free plug-and-play connection specifically engineered for compatible HEYER monitors.
Integrated One-Piece Construction: The molded one-piece design eliminates separate leadwires, reducing setup time, minimizing cable tangles, and simplifying cleaning and sterilization workflows.
Comprehensive 5-Lead Monitoring: Enables multi-channel ECG tracing, delivering the detailed waveforms necessary for comprehensive cardiac analysis, ST-segment assessment, and arrhythmia detection.
IEC Color Coding: Complies fully with the International Electrotechnical Commission (IEC) color standards (Red, Yellow, Green, Brown, Black) for swift, error-free electrode placement by clinical staff.
Secure Snap Terminations: Heavy-duty Snap ends attach firmly to standard ECG electrodes, minimizing motion artifacts and maintaining optimal signal integrity during patient movement.
Medical-Grade TPU Jacket: Wrapped in a robust, flexible TPU jacket that is latex-free, biocompatible, and highly resistant to repeated bending, pulling, and regular clinical disinfection.

Parameter	Specification
Compatibility	HEYER Patient Monitors
Connector Type	8-Pin
Design	One-Piece / Integrated
Lead Configuration	5-Lead
Color Code Standard	IEC (European Standard)
Patient-End Interface	Snap Electrode
Cable Material	Medical-Grade TPU (Latex-Free, Biocompatible)
Certifications	CE, ISO 13485 Compliance

Product Photo:

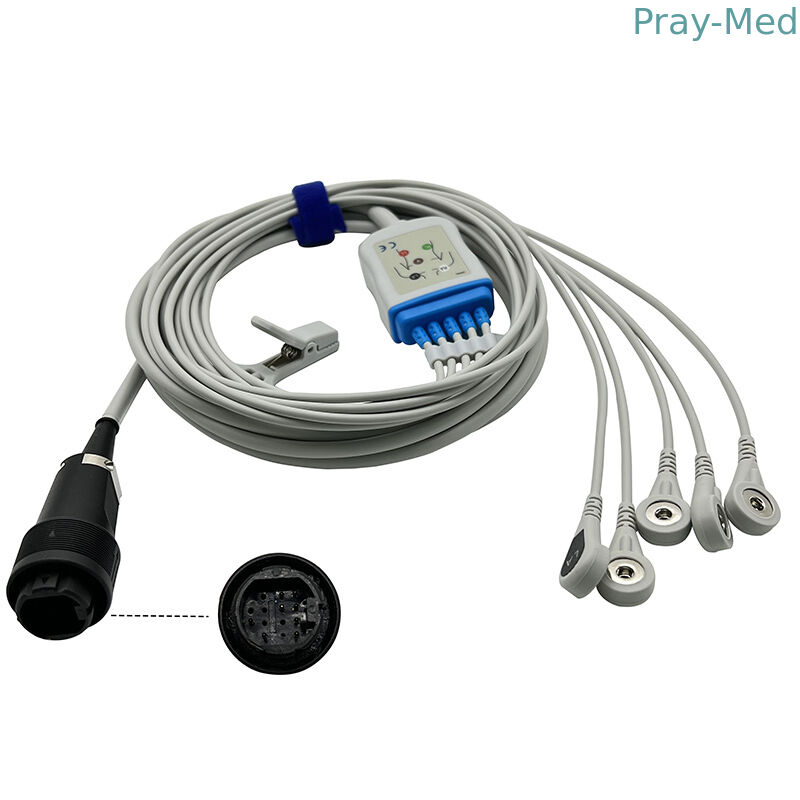

HEYER 8 Pin 5 Lead One Piece ECG Cable, IEC Snap Electrode 0

HEYER 8 Pin 5 Lead One Piece ECG Cable, IEC Snap Electrode 1

HEYER 8 Pin 5 Lead One Piece ECG Cable, IEC Snap Electrode 2

Each ECG lead wires will be inspected to confirm it is a good performance.

HEYER 8 Pin 5 Lead One Piece ECG Cable, IEC Snap Electrode 3

Warranty:

1. In-Warranty Period: we will give the replacement for all quality problems in time under normal conditions
of use.

2. If the new items can not work with your devices, we will send new replacement or refund in time.

Shipment:

Mindray SynoVent E3 E5 Expiratory Valve Assembly For ventilators 801-VT60-00032-00 115-005288-00 6

Factory Photos:

HEYER 8 Pin 5 Lead One Piece ECG Cable, IEC Snap Electrode 5

HEYER 8 Pin 5 Lead One Piece ECG Cable, IEC Snap Electrode 6

Mindray SynoVent E3 E5 Expiratory Valve Assembly For ventilators 801-VT60-00032-00 115-005288-00 11

Our Services:

1. We are the factory,the price can be more competitive,Welcome OEM/ODM.

2. Sample order, develop new products

3. We will reply you for your inquiry in 24 hours,If you have any questions or problem we will offer the solve way for you.

4. After sending, we will track the products for you, until you get the products.

When you got the goods, please test them. And we'd like get a feedback from you.
