| Model Number: | N595,N600 |
| MOQ: | 1box |
| Price: | as the quantity |
| Packaging Details: | 1pcs / bag, 24pcs / box |
| Payment Terms: | T / T, Western Union, |

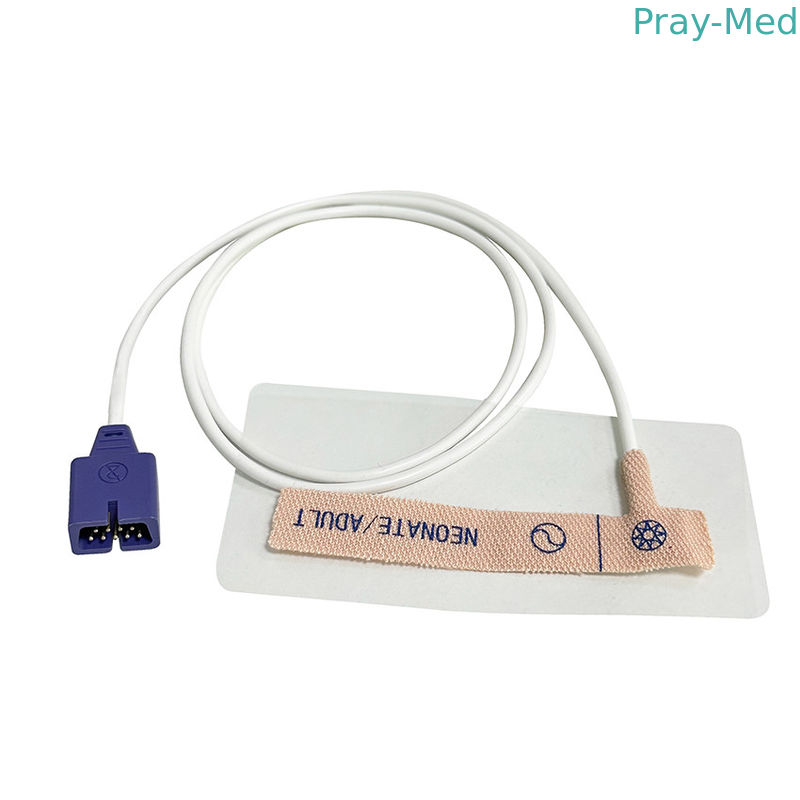

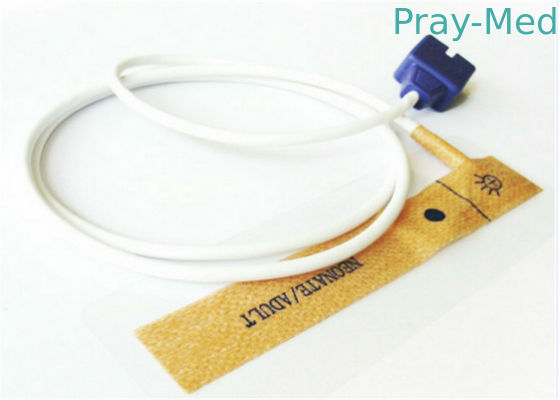

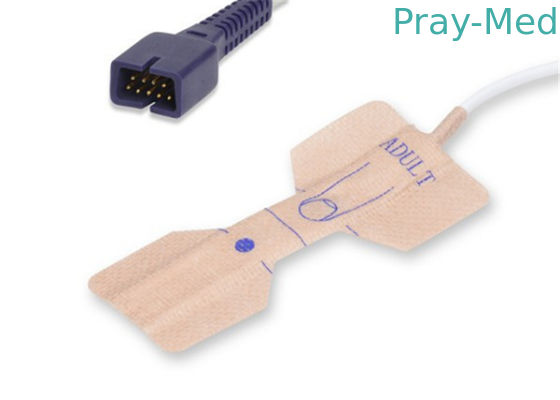

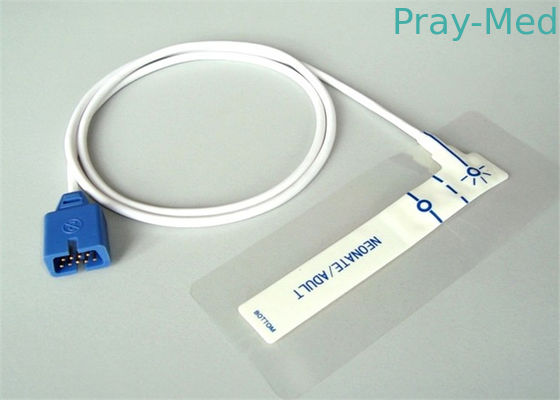

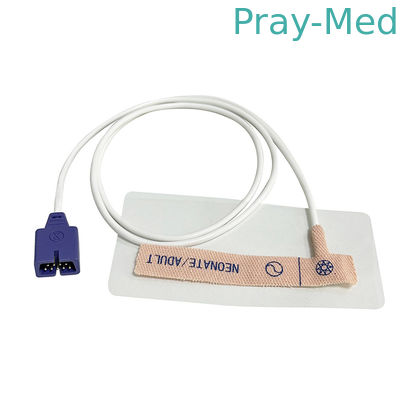

Compatilbe OXI dispsoable spo2 sensor for MAX-A,MAX-N,MAX-P
Specifications:
1. Connector : 9pin
2. Length : 0.9 meter
3, Cable material :TPU cable
4, Compatible Brand:
Cable length is 0.9 Meter
Adult and Pediatric Disposable SpO2 Sensor
Application :Adult>40KG,10-40KG( 3KG-15KG,< 3KG also available)
Application site:Index or other finger
Products features
Main technical parameters:
| LEDS | Red | 660nm normal |
| Infrared | 880/905/940nm normal | |
| Text Range | Oxygen Saturation(%SpO2) | 0% to 100% |
| Pulse Rate(bpm) | 30 to 245 | |
Accuracy |
SpO2 |
±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse Rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||
| Storage and Transport Environment | -10°C~+40°C | |
| Operating Temperature | +5°C~+40°C | |
| Operating/Storage/Transportation humidity | 0%-80% | |
| Hyperbaric pressure | 86kPa-106 kPa | |
Process flow
1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package
|
