O2 Cell Envitec Oxygen Sensor OOM201 Mox-9 / 6850645 13-16mV Signal Output

Basic Information
Place of Origin: china
Brand Name: Envitec
Certification: CE,ISO
Model Number: OOM201
Minimum Order Quantity: 1pcs
Price: as discussed
Packaging Details: 1pcs / box
Delivery Time: 1-2 work days
Payment Terms: T/T, Western Union,
Supply Ability: 200pcs/ week
Material: Plastic And Metal Connector: Molex 3pin Connector
Color: White Package: 1box
Warranty: 15moths Accuracy: +/-2% Of Full Scale
Compatible Model: 6850645 Signal Output: 13-16mV
High Light:

medical o2 sensor


envitec oxygen sensor

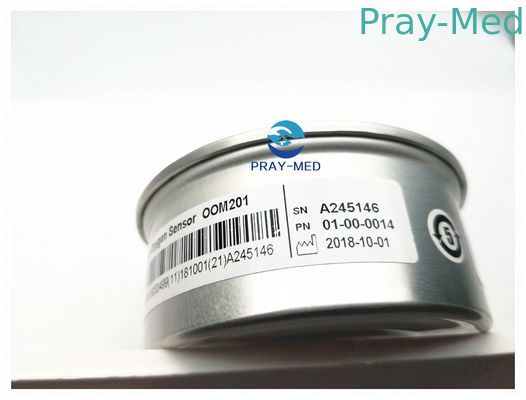

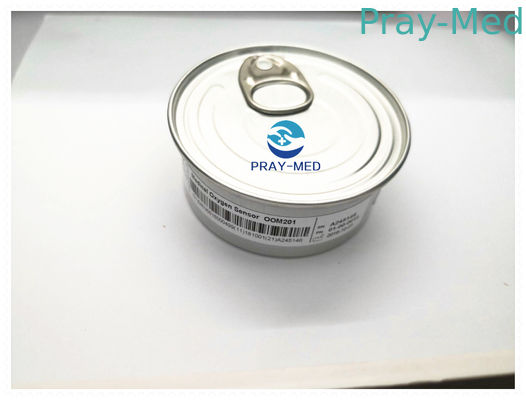

Orignal Envitec OOM201 oxygen sensor / O2 sensor mox-9 / 6850645
Technical Specifications

Measuring range 0-100%
Accuracy +/-2% of full scale
Signal output 13-16mV
Linearity +/-2% of full scale
Response T90 13 sec
Temp Coefficient compensated
Shelf Life 6 months
Humidity Non-condensing 0-99% RH
Operating Temp 0 to 40℃
Recommended storage 0 to 25℃
Expected Life 60 months
Warrangty 15 months
Electrical Connector

Molex 3pin connector

compatible model

Analytical Industries PSR-11-917-M
Bird Products (VIASYS) (Bird) Avea. Vent
Catalyst Research MSA (MSA) 472 062, 470 644
Ceramatec CAG-12
City Technology (City Technology) MOX-9, MOX-09
EME, Infant Flow

Hamilton (Hamilton Ruishi Ha / Summer Hamilton) Galileo (Galileo), Raphael (Raphael),
Alladin HM-12, 51214

Hudson 5566
Infrasonics Adult Star 601T, 60116
IT-Gambert M-04, M-16
Maxtec () MAX-12, MAX-16
Mercury Medical 10-103-06
Ohmeda O2 cell 6051-0000-222
Pacifitech PT-12
Puritan Bennett (PB Tyco) Ventilators 840, 740, 760 4-072214-00
PPG Biomedical Saracap 504055-001
Sensidyne SV-12A
Sensor Tec (BPR Medical) ST-12, ST-04
original (original) Servo Ventilators, 900, 900C, 900D, 700, 710, 300, V710300, 9004979, 6419332
Space Labs 90514, Gas Analyzer 015-0132-03
Taema (Pegasus) YR049700, Cesar 2, Horus
Teledyne R24, R24MED, Cheiron R-24, Hill-ROM R-24
Vascular Technology 103100
Ventrex V-12A
VTI 103100
Nuova E-17 / M
