| Brand Name: | envitec |
| Model Number: | OOM102 |
| MOQ: | 1pcs |
| Price: | as discussed |
| Packaging Details: | 1pcs/box |
| Payment Terms: | T/T, Western Union, |

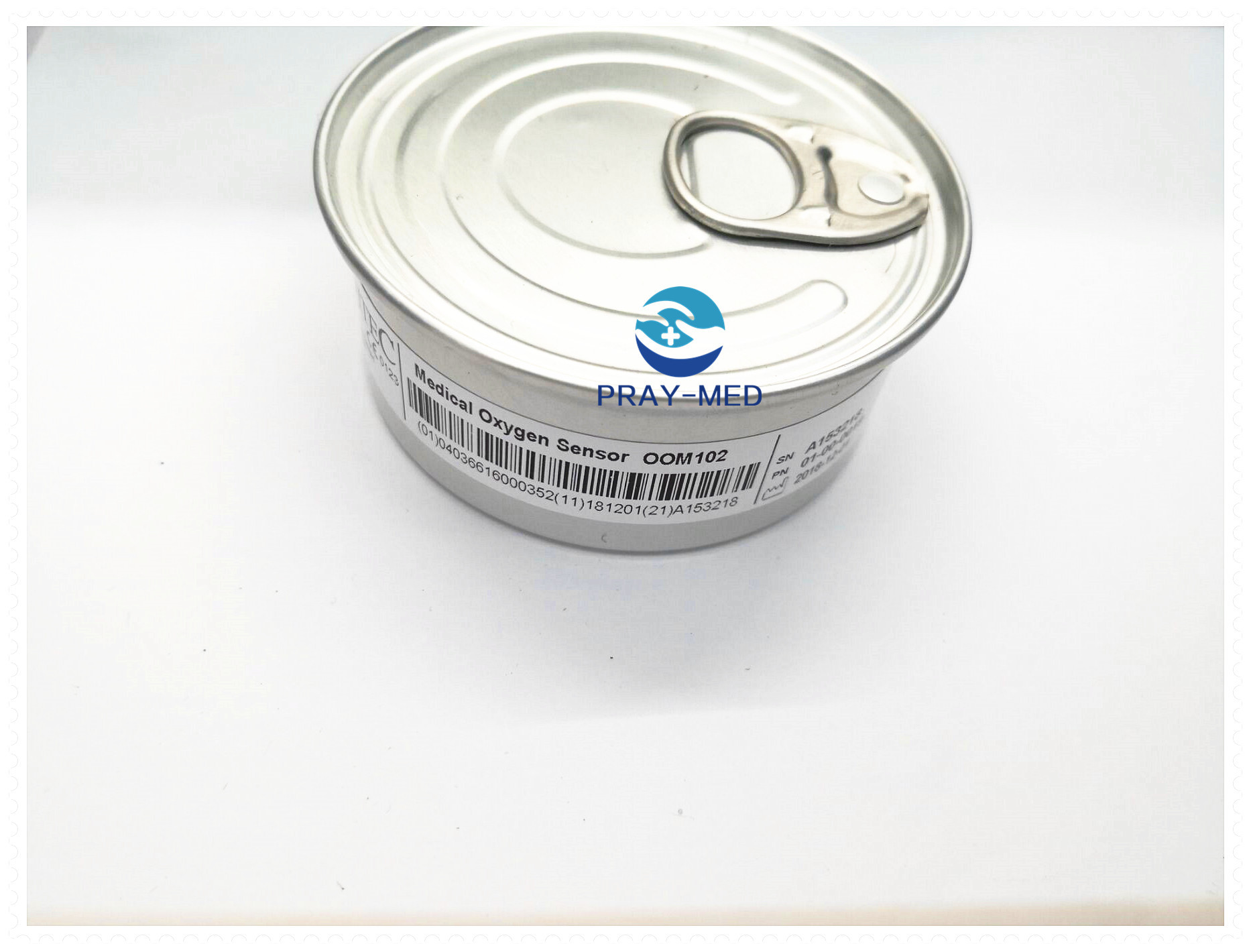

OOM102 envitec medical oxygen sensor compatible with MOX-01 O2 cell sensor
Product Description
| Product Model | OOM102 |
| Measurement range | 0-100% oxygen |
| Output in ambient air | 9 to 14mV
|
| Electrical interface |
OOM102: 3pin(Molex 22-11-1031) OOM102-1:3,5mm Mono Jack |
| Accuracy and repeatability | <1% volume O2 when calibration in 100% oxygen |
| Linearity error | <3% relative |
| Response time | <12 seconds, to 90% of final value |
| Zero Offset Voltage | <200uV in 100% nitrogen applied after 5 minutes |
| Cross Interference |
<0.5% Vol.O2 response to: 10% CO2 balanced N2 80% N2O balanced N2 7.5% halothane in balanced N2 7.5% isoflurane in balanced N2 7.5% enflurane in balanced N2 9% Sevoflurane in balanced N2 20% desflurane in balanced N2 |
| Influence of Humidity | -0.03% relative per% RH at 25 ℃ |
| Influence of Pressure | Proportional to change in oxygen partial pressure |
| Influence of mechanical shock | <1% relative after a fall from 1 meter |
| Operating temperature | 0 ℃ -50 ℃ |
| Temperature compensation | Built-in NTC compensation |
| Effect of Temperature | between +25 ℃ and +40 ℃, 3% relative error |
| Compensation (steady state) | between 0 ° C and +50 ° C, 8% relative error |
| Working humidity | 0-99% RH non-condensing |
| Longoing Term Output Drift | <1%vol oxygen per month typically <-15% relative over lifetime |
| Storage temperature | -20 ℃ to +50 ℃ |
| Recommended storage temperature | +5 ℃ +15 ℃ |
| Recommended load | ≥10Ω |
| Warm-up time | <30 minutes, after replacement of sensor |
| Rated sensor life | ≥1 000 000% volume oxygen hours |
| Weight | approximately 28 grams |
Use the advantages:
•Meet EN ISO 21647
• Designed and manufactured according to EN ISO 9001 : 2000 and EN ISO 13485 : 2003
• Accurate and reliable response
• Resistant to N2O
• Excellent signal stability
• High product quality
• Short lead times
1. In-Warranty Period: we will give the replacement for all quality problems in time under normal conditions of use.
2. If the new items can not work with your devices, we will send new replacement or refund in time.
|
|
