Medical Oxygen Sensor
>
Envitec OOM204 Medical Oxygen Sensor O2 Cell Plastic / Metal Material CE Approval

Envitec OOM204 Medical Oxygen Sensor O2 Cell Plastic / Metal Material CE Approval

Brand Name: envitec
Model Number: OOM204
MOQ: 1PCS
Price: As discussed
Packaging Details: 1pcs / box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
germany
Certification:
CE
Material:
Plastic And Metal
Connector:
3 Pin Molex
Color:
White
Packagin:
Box
Weight:
28g
Original Code:
OOM204
Supply Ability:
200pcs / week
Highlight:

medical o2 sensor

,

envitec oxygen sensor

Product Description

Envitec OOM204 medical oxygen sensor / O2 Cell



Specification:



  1. Measuring range: 0-100%
  2. Output signal in air: 9-13.5mV (every two channels)
  3. Different output: 1.25mV (between two channels)
  4. Circuit Interface: 3Pin (Molex)
  5. Accuracy and repeatability: <1% volume of oxygen, after calibration in 100% oxygen
  6. Linearity error: <3% relative error
  7. Response time: <12 seconds, relative to 90% relative value
  8. Zero drift: <200uV placed in 100% nitrogen for 5 minutes
  9. Cross interference: <0.5% volume of oxygen for:
  10. 10% CO2 in balanced nitrogen
  11. 80% N2O in balanced nitrogen
  12. 7.5% halothane in balanced nitrogen
  13. 7.5% isoflurane in equilibrium nitrogen
  14. 7.5% enflurane in equilibrium nitrogen
  15. 9% enflurane in balanced nitrogen
  16. 20% desflurane in equilibrium nitrogen
  17. Effect of temperature: -0.03% relative temperature, 25 ° C
  18. Effect of pressure: proportional to oxygen partial pressure
  19. Mechanical shock impact: <1% relative error, falling from a height of 1 meter
  20. Working temperature: 0°C-50°C
  21. Temperature compensation: Built-in thermistor compensation
  22. Temperature effect: 25 ° C -40 ° C, 3% relative error
  23. Compensation (steady state): Between 0 ° C and 50 ° C, 8% relative error
  24. Operating humidity: 0-99% RH (a few hours in condensable air)
  25. Storage temperature: -20 ° C -50 ° C
  26. Recommended storage temperature: 5 ° C - 15 ° C
  27. Recommended load: ≥10Ω
  28. Warm-up time: <30 minutes after replacing the sensor
  29. Rated sensor life: ≥500 000% volume oxygen hour
  30. Weight: about 28G

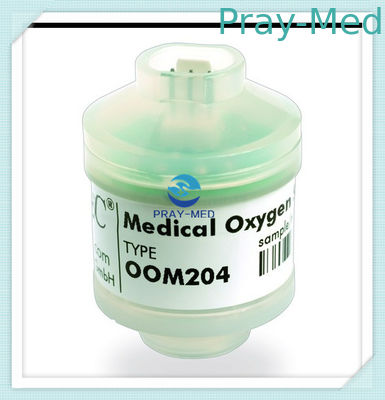

Envitec OOM204 Medical Oxygen Sensor O2 Cell Plastic / Metal Material CE Approval 0

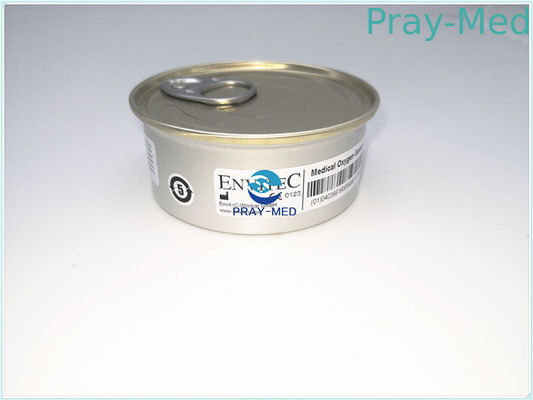

Envitec OOM204 Medical Oxygen Sensor O2 Cell Plastic / Metal Material CE Approval 1
