Vela Analytical Oxygen Sensor Cell Industries Inc All PSR-11-75-KE4 CE Approval

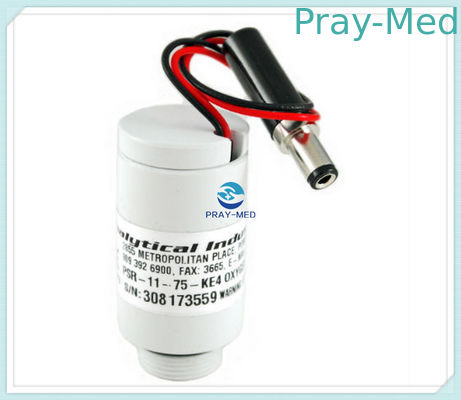

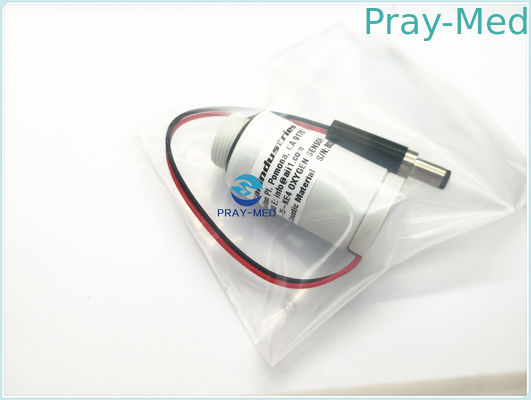

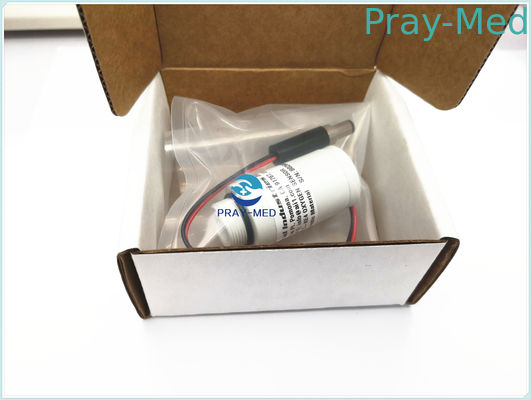

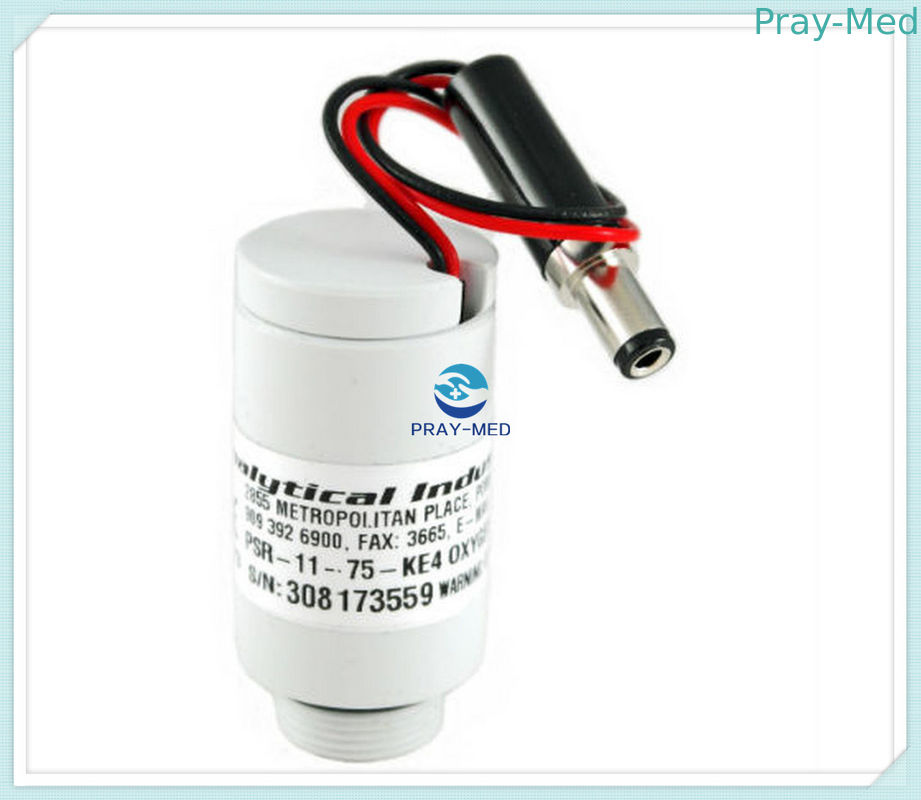

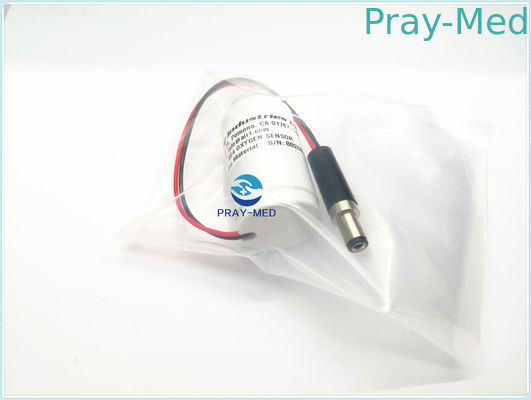

Industries Inc All PSR-11-75-KE4 medical oxygen sensor / O2 sensor

Specification:

1. Bird VELA oxygen battery PSR-11-75-KE4
2. Compatible with American (MAXTEC) original MAX-250(B) oxygen battery for bird VELA ventilator
3. Bird ventilator oxygen battery, VELA ventilator oxygen battery
4. Measuring range: 0-100 %
5. Working life: 900 000% hour, about 5 years in the atmosphere
6. Output : 10 to 16 mV
7. Zero voltage: less than 0.5 mv
8. Resolution : ± 0.1 %
9. Temperature range : 5°C to 45°C
10. Pressure range: 0.5 to 1.5 ATM
11. Response time 1MΩ
12. Accuracy: ±1% (normal temperature and pressure), ±2% (full scale temperature range)
13. Storage temperature :15 ° C to 50 ° C
14. Sampling port: M16X1 thread
15. Storage life : 6 months (in the container)
16. Shelf life : 18 months from the date of shipment
17. US AII PSR-11-917-M2 for PB840, 760 Hamilton, Tianma and other ventilators
18. American AII PSR-11-75-KE6 SLE 2000 ventilator oxygen battery
19. US AII PSR-11-915-4 oxygen battery Ohmeda 7900 oxygen battery 6050-004-110 Ohmeda 7100 oxygen battery 6050-004-110 Ohmeda Aestiva 3000 56050-004-110 Compatible with Envite OOM110 Compatible with IT company M- 10 Europe and the United States 7100 anesthesia machine oxygen battery Europe and the United States 7900 anesthesia machine oxygen battery
20. US AII PSR-11-917-J oxygen battery PB7200 ventilator oxygen battery Wuxi Zhongyuan anesthesia machine oxygen battery Tianma anesthesia machine oxygen battery

American AII PSR-11-75-KE4 oxygen battery Viasys Vela bird VELA oxygen battery Bird VELA ventilator, oxygen sensor

US AII PSR-11-75-KE9 oxygen battery Newport e360 Newport e500 Newport E360 ventilator

oxygen battery Newport E500 ventilator
