Brand Name: | ITG |
Model Number: | M-15 |
MOQ: | 1Pcs |
Price: | as discussed |
Packaging Details: | 1pcs / bag |
Payment Terms: | T/T, Western Union |

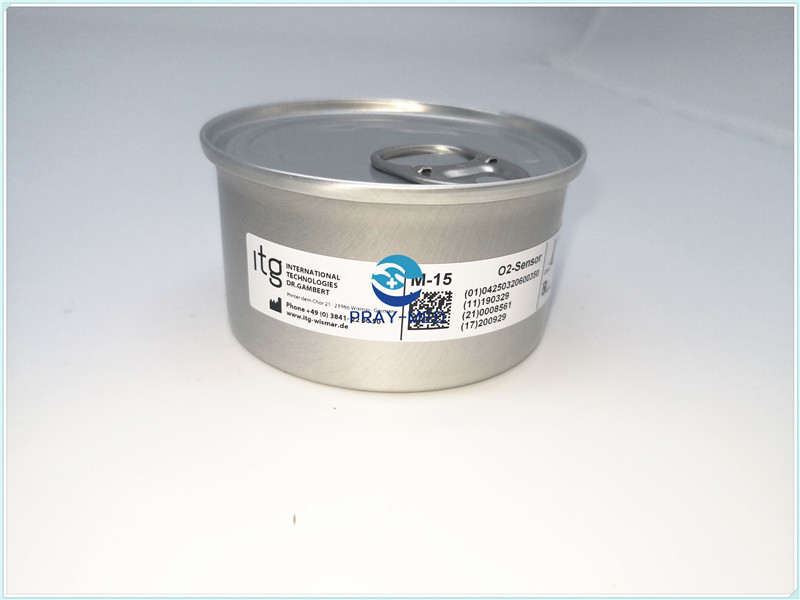

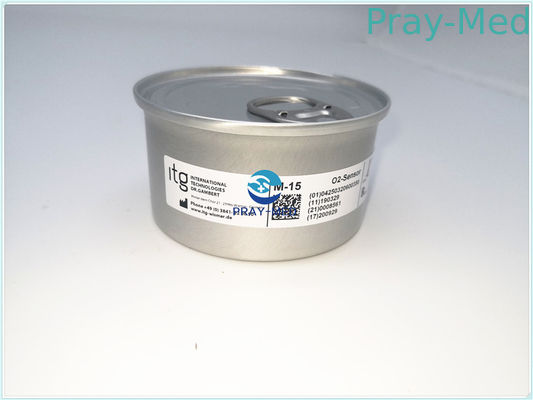

ITG M-15 medical oxygen sensor / o2 cell for anesthesia equipement
Compatiblity:
This oxygen sensor is available for use with Caradyne: Criterion 40, Criterion 60, WhisperFlow 2-40, WhisperFlow 2-60; Envitec: OxiQuant M; MSA: Mini-OX3000; Mindray > Datascope: Anestar Plus; Siare: Morpheus; Stephan: Artec, Christina, F120 Reanimator, F120 Reanimator Mobile, F120GT Globetrotter; Taema: Alys, Clarys, YR010100; Teledyne: MX 300, TED AX 300
The oxygen sensor cell M-15 is a oxygen measurement cell offering a long life-span for use in hospitals
and other medical environments. It is an oxygen sensor with 3.5 mm headphone mono jack compatible
with many instruments and incubators. The sensor cell offers superior performance with a stable linear
output signal and only requires a simple periodic one-point calibration
Medical oxygen sensor (o2 cell ) M-15
Product model: M-15
Product Description: O2 Sensor Medical Oxygen Sensor
Main function: monitoring inhaled oxygen concentration in anesthesia breathing equipment
Performance parameters: electrochemical principle;
Measuring range: 0-100% oxygen concentration;
Response time: < 12 seconds
Wiring port: 3.5mm independent socket
Operating temperature: 0°C to 40°C
Storage temperature: 5 ° C to 30 ° C
Pressure range: 600 to 1750 hPa
Humidity range: 0-100% RH (high humidity resistance)
Volume: ¢31.4mm×39.7mm
Working life: 6 years in the air
One-time use
Main features: Compatible with all imported brands of anesthesia breathing equipment, IT has a long history of oxygen sensing technology, widely used in medical, aviation, diving and other industries.
Applicable brands: Taema Tianma Alys/Clarys/YR010100/Horus, Airshields, Caradyne, Stephan
