| Place of Origin: | China |
|---|---|
| Brand Name: | pray-med |
| Certification: | CE |
| Model Number: | AG100 |
| Minimum Order Quantity: | 1pcs |
| Price: | as discussed |
| Packaging Details: | 1pcs / box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pcs / week |
| Place Of Origin: | China | Model: | AG100 |
|---|---|---|---|
| Warranty: | 1 Year | Instrument Classification: | Class II |
| High Light: | Sidestream Anesthesia Gas Sensor,150 Bpm Anesthesia Gas Sensor,Sidestream Anaesthesia Gas Module |
||

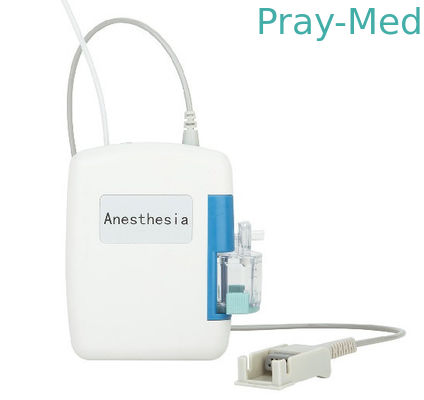

Sidestream Anesthesia Gas Sensor AG100
The AG100 series sidestream anaesthesia gas module is the ideal anesthesia solution for your patient monitoring system.
AG100 can show an accurate gas concentration with all respiration rates up to 150 bpm.
AG100 is for use on adult, pediatric and infant patients; patients undergoing procedural sedation; and short- term monitoring of intubated patients.
Product Features
NDIR technology
CO2 and anesthesia multigas monitoring
Low power consumption less than 2W
Fast warmup time ensures full accuracy within 2 minutes
Sample rate low to 100 mL/min
Barometer pressure and temperature compensation
Real-time and continuous measurement of gas concentrations and respiratory rate
| Measurement Accurancy | Gas Type | Range | Accuracy |
| CO2 | 0 - 10% | ±(0.2 vol% +2% of reading) | |
| 10 -15% | ± (0.3 vol% +2% of reading) | ||
| ISO | 0 - 6% | ± (0.2vol% +2% of reading) | |
| ENF,HAL | 0 - 6% | ± (0.2vol% +2% of reading) | |
| DES | 0 - 18% | ± (0.2vol% +2% of reading) | |
| SEV | 0 - 8% | ± (0.2vol% +2% of reading) |
