Place of Origin:
USA
Brand Name:
pray-med
Certification:
CE
Model Number:
PSR-11-75-KE7

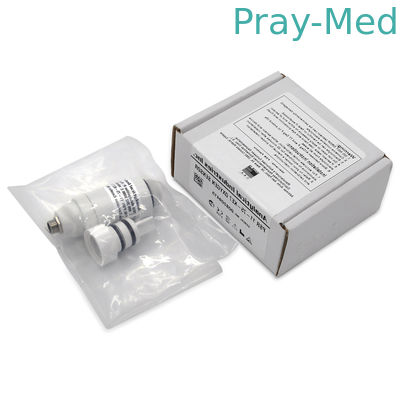

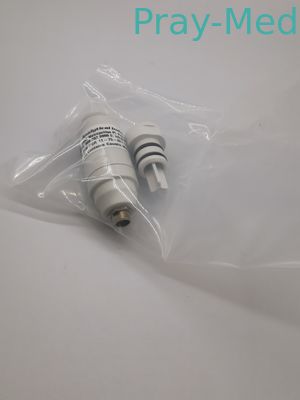

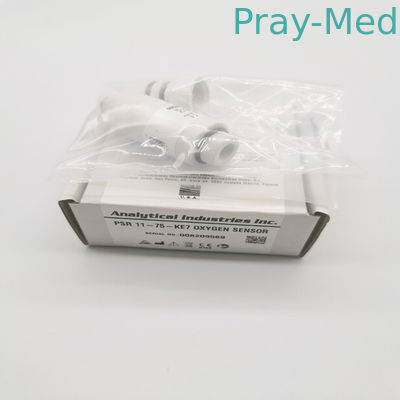

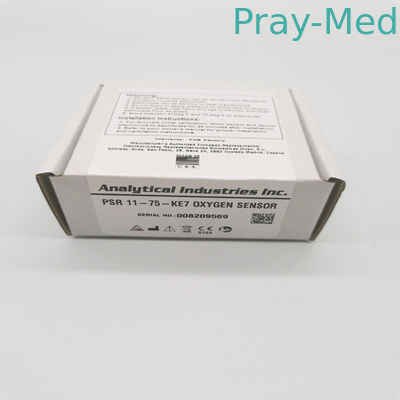

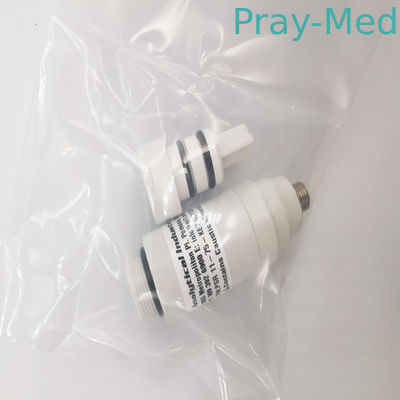

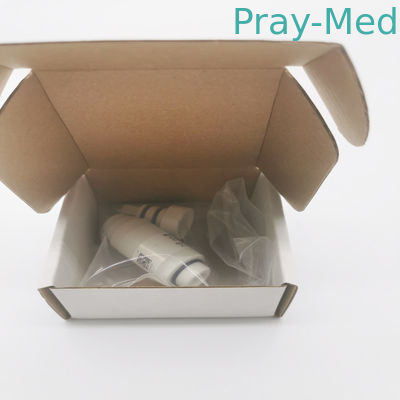

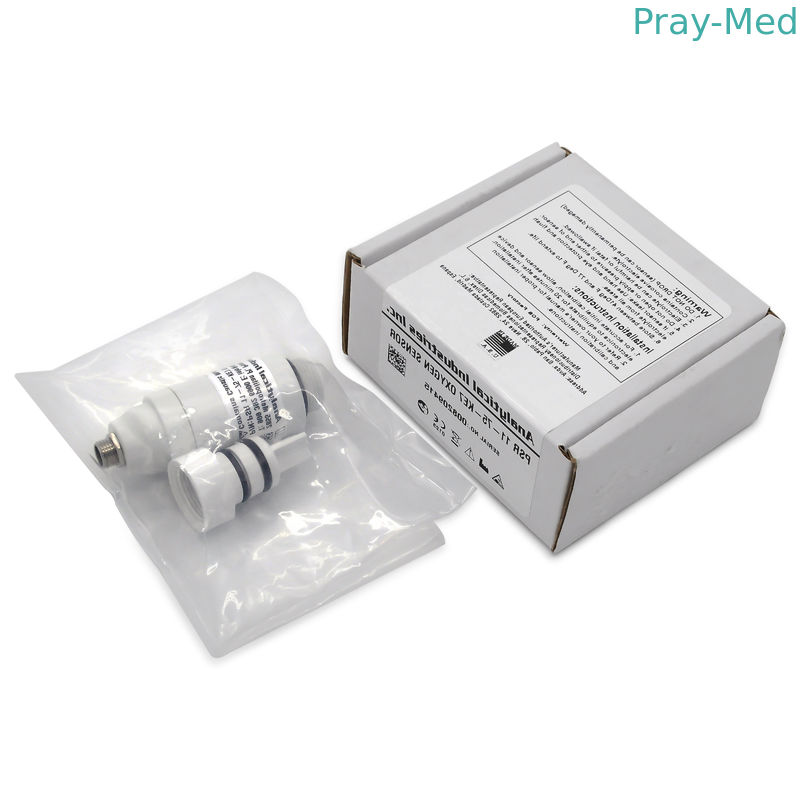

Original oxygen sensor O2 sensor For Ventilator O2 Cell PSR-11-75-KE7
Product Description:
Advanced galvanic type % oxygen sensor with excellent stability and accuracy under stringent applications. All oxygen sensors are subjected to the most extensive stability test, output in air, 30″ of water column pressure test and stability at 100% oxygen
Specification:
| Output Voltage | 10-13.5mV |
| Measurement range | 0 to 100% O2 |
| Output connector | Large Phone Jack |
| Accuracy | With +/- 2% of full scale |
| Response time | <13 seconds |
| Operating humidity | 0 to 99% RH (non-condensing) |
| Operating temperature | 0 degree to 45 degree |
| Storage temperature | 0 degree to 25 degree |
Advance:
costs less than the sensors it replaces, creating additional savings while providing superior quality.
How does a ventilator oxygen sensor work?
To control and monitor the oxygen level of a Coronavirus patient on a ventilator, sensors are used to measure oxygen both in the gas being given to the patent as well as the exhaled oxygen level - also referred to as end-tidal oxygen (ETO2). ... These relatively low-cost and dependable devices measure 0-100% oxygen levels.
