| Brand Name: | pray-med |
| Model Number: | OEM |
| MOQ: | 1pcs |
| Price: | as discussed |
| Packaging Details: | 1pcs / box |
| Payment Terms: | T/T, Western Union |

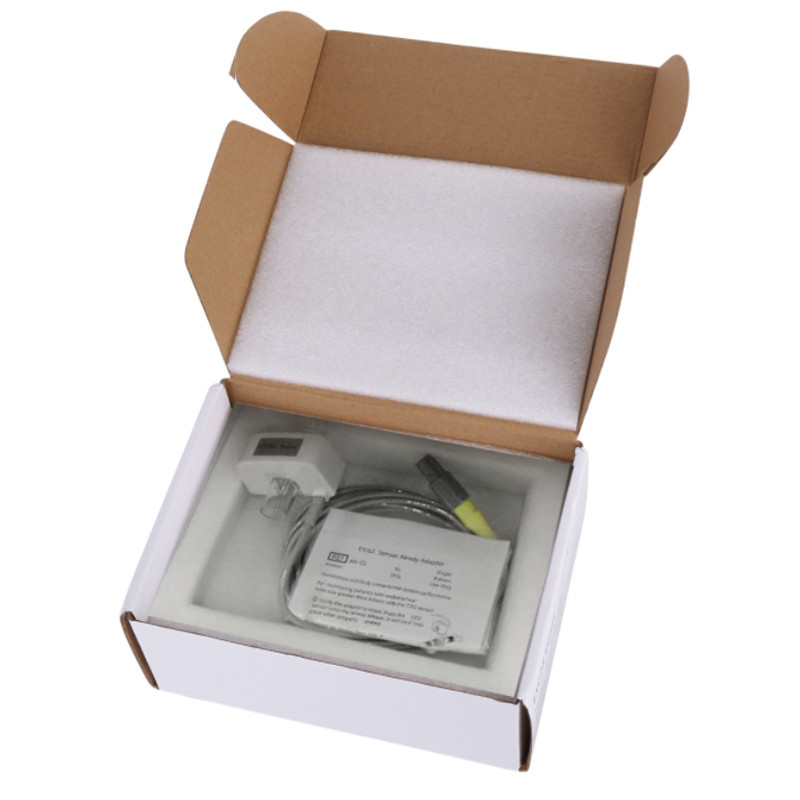

Mainstream EtCO2 Sensor, ETCO2 Monitor
Mainstream EtCO2 Sensor is a plug and play mainstream CO2 sensor for Clinical End tidal Carbon Dioxide Monitoring. adopts NDIR (non-dispersive infrared) technology for real time CO2 concentration, respiration rate, end-tidal CO2 value and inspired CO2 concentration . Its professional dewater method reduced disturb from the vapor.
PRODUCT FEATURES:
| Technical Specifications | |
| Transducer Type | Mainstream CO2 Sensor |
| Sample Rate | 50 mL/min, ±10mL/min. |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts |
| Initialization Time | Capnogram displayed in less than 4 seconds full specifications within 2 minutes |
| CO2 Measure Range | 0 - 114 mmHg 0 - 15% 0 - 15.2kPa |
| CO2 Resolution | 0.1 mm Hg 0 to 59 mm Hg 0.25 mm Hg 60 to 114 mm Hg |
| CO2 Accuracy | 0 – 40mm ±2 mmHg 41 – 76 mmHg ±5% of reading 77 – 114 mmHg ±8% of reading Above 80 BPM ± 1 2 % o f r e ading |
| CO2 Stability | Drift over four hours shall not exceed 1 mmHg maximum Accuracy specification will be maintained over a 120-hour period |
| Sampling Frequency | 100 Hz |
| Respiration Rate Range | 2 to 150 Breaths Per Minute (BPM) |
| Respiration Rate Accuracy | ±1 breath |
| Compensations | Automatic Barometric pressure 400 mmHg to 800 mmHg Operator selectable O2, N2O, He and agent compensation |
| Calibration | No routine user calibration required. |
| Voltage Requirements | 5.0 VDC ±5% |
| Power Consumption | Less than 1.2 Watts typical (Steady State) Up to 2 Watts maximum on power up (Warm up) |
| Interconnection | Standard Pin out: 1. VA 5.0V 2.Shield Shield 3.DGND Digital return 4. VSRC 5.0V 5.TxD Serial data from Sensor 6.RxD Serial data from Host 7. AGND Analog return 8.SYNC Unused |
| Data Interface | RS232, bi-directional, 19200 baud rate, standard N-8-1. |
| Data Output | CO2 gas concentration(mmHg), End-tidal CO2 , Inspired CO2 , Respiratory Rate. Gas and barometric pressure compensated when supplied by host. |
| Temperature and Humidity | Operating: 0 to 45℃, 10 to 90% RH, non-condensing Storage: -40 to 70℃, <90% RH, non-condensing |
| Water Resistance | IPX4 – Splash-proof (sensor head only) |
|
|
