Dispsoable Invasive Blood Pressure Cable Single Channel Abbott Ibp Transducer

Dispsoable Invasive Blood Pressure Cable Single Channel Abbott Ibp Transducer

blood pressure cable

ge ibp cable

Place of Origin:

CHINA

Brand Name:

OEM

Certification:

CE

Model Number:

OEM

Contact Us
Request A Quote
Product Details
Material:
Tpu
Color:
Light Blue
Connector:
Abbott
Type:
Single Channel
Catheter Length:
20 - 30 Cm
Packing:
Mainpart / Kit
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
as demand
Packaging Details
1pcs / pack
Delivery Time
5-7 work days
Payment Terms
T/T, Western Union
Supply Ability
2000pcs / week
Product Description

Dispsoable single channel abbott ibp transducer invasive blood pressure transducer



Product Description

supply all for connectors

Cable Material PVC Jacket
Category IBP
Certifications CE
Connector Distal Abbott Connector
Hose Color Gray
Hose Diameter Infusion tube: outer diameter 4.00±0.10mm, inner diameter 2.85±0.10mm
Hose Length 20 +130 + 150 cm
Hose Material PVC Jacket
Hose Patient Size Adult/Pediatric
Latex-free Yes
Packaging Type Box
Packaging Unit 1
Sterile Yes
Weight 120g

Specifications:



-- Continuously auto-monitoring of the real-time hemodynamic changes gurantees the accurate measurement;

-- Ease of use with a variety of cables;

-- Single / double / triple channels are available;

-- Advanced CMOS chip provides superior sensitivity;



Continuous Flow Rate 3cc/hr (± 1cc/hr) or 30cc/hr (±10cc/hr) at 300 mmHg
Operating Pressure Range -50 to +300 mmHg
Sensitivity 5 µV/V/mmHg, ±2% (typically< ±1%)
Zero Drift With Time < ±1.0 mmHg/8 hours after 10 min
Leakage Current <2 µA @ 115 Vac rms at 60 Hz
Unbalance ±75 mmHg
Overpressure Protection -400 to +4000 mmHg
Operating Temperature 15° C to 40° C
Excitation Voltage and Frequency 2 to 10 Vdc; or Vac rms to 5 kHz
Operating Life >500 hours
Storage Temperature -25° C to +65° C
Defibrillation Withstand 5 discharges/5 minutes of 400 joules @50 ohm load
Natural Frequency >200 Hz in saline
Phase Shift <5° at 5 kHz
Output Impedance 270 Ohms to 400 Ohms
Input Impedance 270 Ohms to 400 Ohms

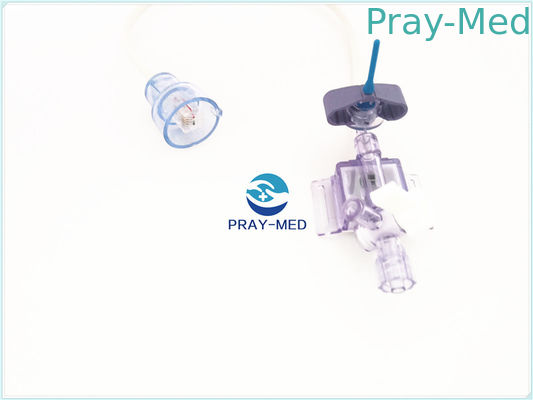

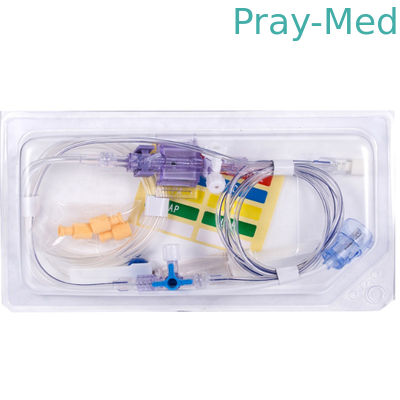

Dispsoable Invasive Blood Pressure Cable Single Channel Abbott Ibp Transducer 0

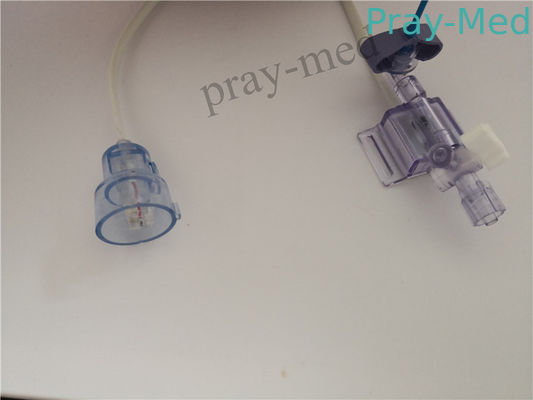

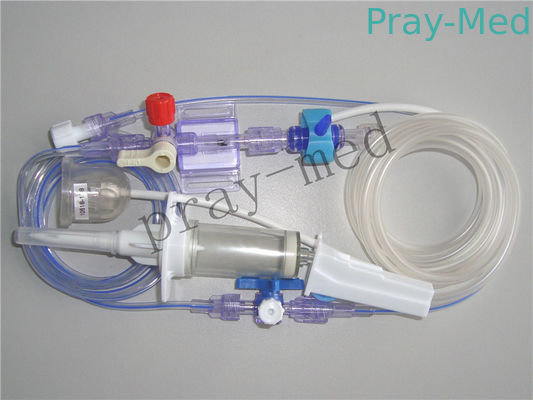

 Dispsoable Invasive Blood Pressure Cable Single Channel Abbott Ibp Transducer 1

PX600 Edwards Connector Compatible IBP Disposable Transducer
