CSI 506DX Criticare Spo2 Sensor DB 6 Pin Pulse Oximeter Finger Sensor TPU

CSI 506DX Criticare Spo2 Sensor DB 6 Pin Pulse Oximeter Finger Sensor TPU

CSI 506DX spo2 sensor probe

CSI 506DX Pulse Oximeter Finger Sensor

CSI 506DX Criticare Spo2 Sensor

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Cable Color:
Grey White
Cable Length:
Patient Side:
Finger Clip / Soft Tip / Neonate Wrap
Suitable People:
Adult / Pediatric / Infant / Neonate
Medical Materials & Accessorie
Surgical Supplies
Payment & Shipping Terms
Minimum Order Quantity
according to the quantity
Packaging Details
1pcs/ bag
Delivery Time
5-7 work days
Payment Terms
T / T, Western Union,
Product Description

Factory provide Criticare / CSI 506DX reusable adult finger clip spo2 sensor DB6pin with 1m suppliers



Product Description
Cable Color Gray
Cable Material TPU Jacket
Category SpO2 Sensor
Certifications CE/ISO
Connector Distal 90 degree, 6 pin Criticare connector, Keyed
Connector Proximal Adult Clip/adult soft/pediatric clip/neonate soft
Latex-free Yes
Packaging Type Bag
Packaging Unit 1
Patient Size all
SpO2 Technology Criticare
Total Cable Length 3m/10 ft
Warranty 12 months

CE&ISO13485 Manufacturer Criticare CSI spo2 sensor


when you select the Spo2 sensor, please check carefully the below points:

1) whether the Spo2 sensor connector is really compatible to your patient monitor socket,such as 5pin or 6pin.

2)whether the patient terminal is the right type you want? Snap or clip?

the sensor is used for the right people? such as for adult or neonate.

Manufacturer Model
CareFusion > Alaris 4415, VitalCheck 4400, VitalCheck 4410
Criticare 503 Spot, 503DX, 503DX-W, 503S, 504DX, 504DX/P, 504DXN, 506DN3, 506DNP3, 506DNT3, 506DNTP3, 506DNV3, 506DNVP3, 506LNP3, 506LNT3, 506LNTP3, 506LNV3, 506LNVP3, 506N3, 506NP3, 506NT3, 506NTP3, 506NV3, 506NVP3, 507ELC2, 8000 series, 8100 series, 8100E, 8100EP, Poet (602-3A), Poet Plus, Poet R Plus, Scholar, Scholar III, nCompass, nGenuity
Ivac VitalCheck 4400, VitalCheck 4410, VitalCheck 4415


Spo2 sensor type


adult finger clip

pediatric finger clip

Adult silicone soft tip

Pediatric silicon soft
Neonate silicone wrap

Adult ear clip

Veterinary spo2 sensors


Main technical parameters:

  • Safety: IEC 60601-1-1 approved, conformity with MDD 93/42/EEC and EN9919:2005
  • Patient sizes: adult
  • Ambient temperature: 0 to 40°C(32 to 104°F)
  • Relative humidity: 15% to 95%
  • Measurement technology: Tri-wavelength LEDs & photo detector
  • LED wavelength: 660nm/880nm/940nm
  • SpO2 accuracy: ±3 (70-100%); Unspecified (0-69%)
  • Pulse rate range: 20-250bpm
  • Pulse rate accuracy: ±3 (20-250bpm)
  • Packages: non-sterilization, individual package with instruction



Working Condition:


A. Environment temperature: 5°C~40°C

B. Relative humidity: 0%-80%

C. Atmospheric pressure: 700-1060 hPa

D. Power: 5V( ±10%)


All kinds of Spo2 Sensors for different brands


We also manufacture and supply the following items:

ECG cable with lead wires,

EKG cable and lead wires

Temperature probe

IBP transducers and cable

NIBP cuffs and hose

ECG electrodes and EEG cable

Compatible Ultrasound probes and original ultrasound probes

TOCO Transducer and US Transducer

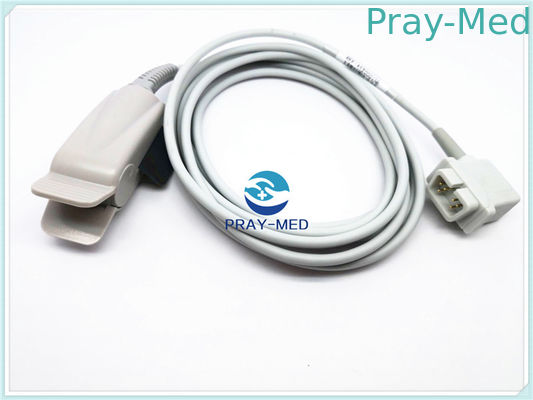

CSI 506DX Criticare Spo2 Sensor DB 6 Pin Pulse Oximeter Finger Sensor TPU 1

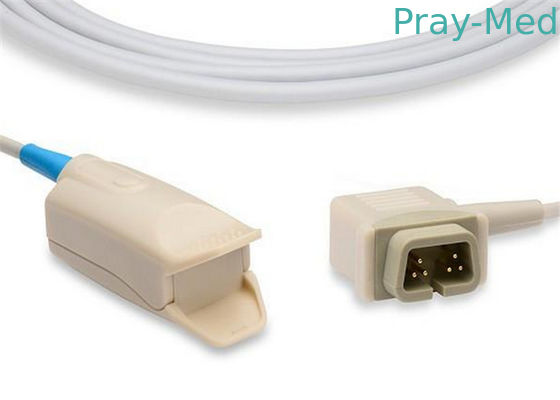

CSI 506DX Criticare Spo2 Sensor DB 6 Pin Pulse Oximeter Finger Sensor TPU 2

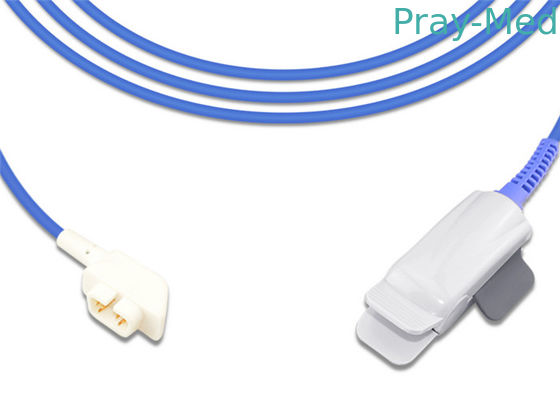

CSI 506DX Criticare Spo2 Sensor DB 6 Pin Pulse Oximeter Finger Sensor TPU 3


every SpO2 sensor will be inspected to confirm it has good performance.

CE&ISO13485 Manufacturer Criticare CSI spo2 sensor
